SAMTEC FTMH11603LDV Micro Terminal Strip

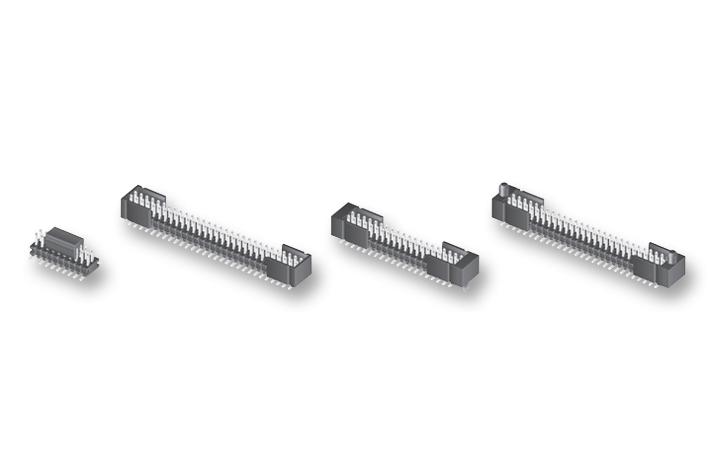

The FTMH11603LDV is a low profile SMT micro terminal strip with a 1.00 mm (.0394 inch) pitch, designed with a black liquid crystal polymer insulator and phosphor bronze terminals. It operates within -55°C to +125°C, offers a current rating of 2.8 A per pin, and complies with RoHS standards. Available with optional shrouds, locking clips, and various plating options, this component is suitable for high-density PCB applications requiring reliable, compact terminal connections.
SAMTEC FTMH11603LDV Micro Terminal Strip Specifications:
- Pitch: 1.00 mm (.0394 inch)
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Current Rating: 2.8 A per pin
- Operating Temperature Range: -55°C to +125°C
- Plating Options: Sn or Au over 50u" Ni
- RoHS Compliance: Yes
- Shroud Options: End shrouds, molded shrouds, with locking clips
- Mounting: Surface Mount
- Number of Positions: 3 to 50 (unshrouded and shrouded options)
- Processing: Bead free, solderable, coplanarity max 0.004" (0.10 mm)
- RoHS Compliant: Yes
- Certifications: Recognitions vary; see manufacturer specs
Buy the Samlec FTMH11603LDV – Reliable Micro Terminal Strips for Industrial Applications
Purchase the Samlec FTMH11603LDV micro terminal strip online today and secure a high-quality connection component designed for compact PCB designs. This low profile, RoHS-compliant terminal strip features a 1.00 mm pitch, with optional shrouds and plating options for versatile applications. Its robust construction ensures reliable electrical connections with a current rating of 2.8 A per pin. Ideal for automation, control panels, and electronic systems, this component guarantees durability and easy integration, making it a perfect choice for demanding industrial environments.
Order your Samlec FTMH11603LDV terminal strip today and enhance your PCB assemblies with a high-quality, low profile, reliable connection solution.
Frequently Asked Questions
Where can I buy SAMTEC FTMH11603LDV?
You can click on the BUY or RFQ button to purchase FTMH11603LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTMH11603LDV?
You can download the FTMH11603LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTMH11603LDV?
SAMTEC
