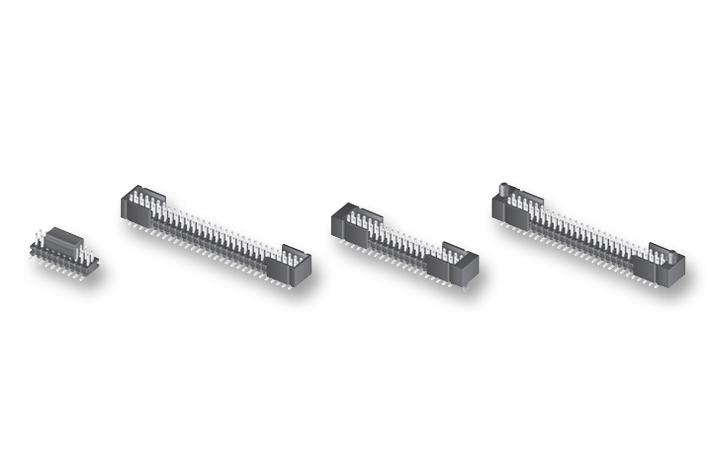

SAMTEC FTMH12002LDV Micro Terminal Strip
The FTMH12002LDV is a low-profile, surface-mount micro terminal strip designed for industrial electronics. Featuring a 1.27 mm (.050 inches) height, it offers shrouded and alignment pin options, providing reliable connections for PCB applications. Constructed with phosphor bronze terminals and black liquid crystal polymer insulators, it supports current ratings of 2.8 A per pin within a temperature range of 55°C to +125°C. Compatible with various shrouds and locking clips, this component ensures secure and precise mounting for complex electronic assemblies.
SAMTEC FTMH12002LDV Micro Terminal Strip Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Current Rating: 2.8 A per pin
- Operating Temp Range: 55°C to +125°C
- Height: 1.27 mm (.050 inches)
- Plating: Sn or Au over 50u" (1.27 μm) Ni
- RoHS Compliant
- Processing: Bead ‘Free Solderable
- Coplanarity: 0.006" max (0.15 mm)
- Number of Positions: 3 to 50
- Mount Type: Surface Mount
- Optional Shrouds: End shrouds with board locks, molded end shrouds for 05 to 08 positions
- Compatibility: Mates with CLM, MLE, optional pick and place pads
- Features: Low profile, surface-mount design, multiple plating options
Buy the Samlec FTMH12002LDV – Reliable Micro Terminal Strip for Industrial Applications
Enhance your electronic assemblies with the reliable and compact micro terminal strip. Designed for PCB surfaces, it offers excellent current capacity and durability. With optional shrouds, alignment features, and RoHS compliance, this component ensures secure, precise connectivity for industrial and electronic applications. Easy to mount and solder, it supports high-temperature ranges up to +125°C, making it ideal for demanding environments. Order online now and ensure your projects benefit from high-quality, dependable connection solutions that boost performance and longevity.
Order your Samlec FTMH12002LDV series micro terminal strip today and give your projects the dependable quality they deserve, ensuring secure and reliable electronic connections.
