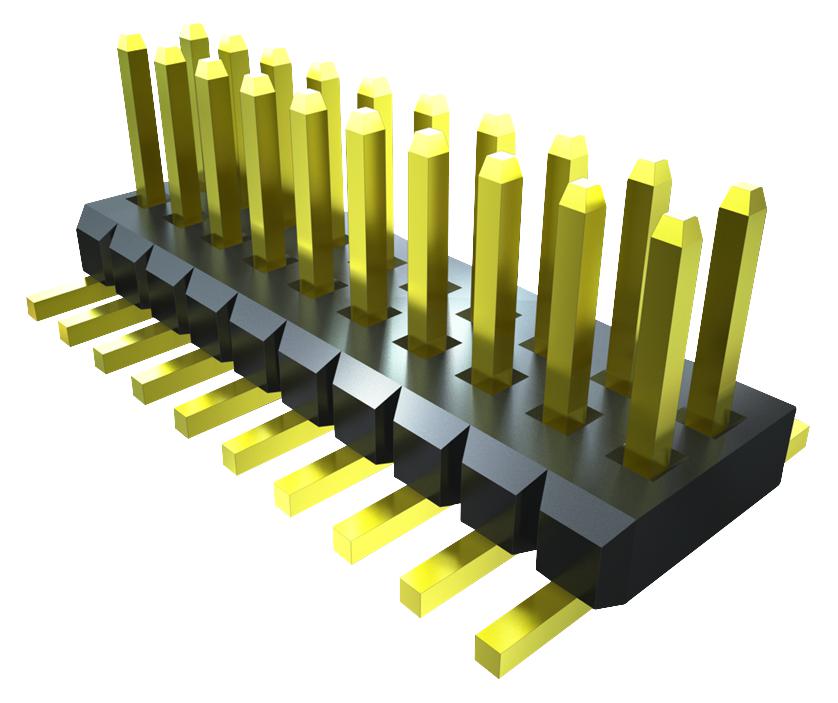

SAMTEC FTS11701LMDV Micro Pitch Terminal
The FTS-117-01-L-DV is a low-profile, high-speed micro pitch terminal with shrouded and alignment pin options, suitable for surface mount or through-hole applications. Constructed from phosphor bronze with gold over nickel plating, it offers excellent electrical performance with 3.4 A per pin current rating. Operating between -55°C to +125°C, its impedance-matched design ensures reliable high-speed data transfer. Compatible with socket strips, IDC cable, or PCB, it is ideal for high-density circuits requiring precise alignment and minimal profile.
SAMTEC FTS11701LMDV Micro Pitch Terminal Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Spot Au over 50 µin (1.27 µm) Ni
- Operating Temp Range: -55 °C to +125 °C
- Current Rating: 3.4 A per pin
- SMT Lead Coplanarity: 0.004" (0.10 mm) max
- Impedance Matching: Yes for high-speed applications
- Surface Mount or Through-Hole Mounting: Yes
- Compatibility: Socket strips, IDC cables
- Micro pitch: 0.050" x 0.050" (1.27 mm x 1.27 mm)
- Shrouded and Alignment Pin Options: Available
- Certification and Recognition: See Samtec quality standards
Buy the Buy Samtec FTS-117-01-L-DV Part Number FTS11701LMDV Online
Purchase your Samtec FTS-117-01-L-DV high-speed micro pitch terminal online now. Designed for reliable high-performance connections, this low-profile connector features gold over nickel plating, supports surface mount and through-hole mounting, and is compatible with socket strips and IDC cables. Its impedance-matched design ensures high-speed data transfer, making it ideal for dense circuits in advanced electronics and PCB applications. Order today to enhance your projects with proven Samtec quality and dependable connections for high-speed electronic systems.
Order your Samtec FTS-117-01-L-DV series micro pitch terminal today and ensure high-speed data integrity with reliable, compact PCB connectors.
Frequently Asked Questions
Where can I buy SAMTEC FTS11701LMDV?
You can click on the BUY or RFQ button to purchase FTS11701LMDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTS11701LMDV?
You can download the FTS11701LMDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTS11701LMDV?
SAMTEC
