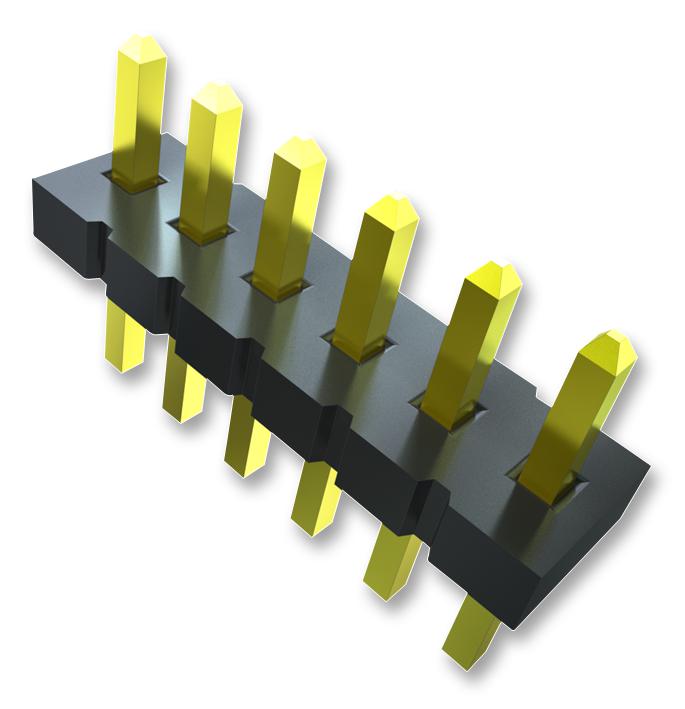

SAMTEC FTS11702LDS Low-profile Terminal Strip
The FTS11702LDS is a low-profile surface-mount terminal strip designed for high-speed, impedance-matched connections in electronic assemblies. Featuring black liquid crystal polymer insulation, phosphor bronze contacts, and gold over nickel plating, this component supports operating temperatures from -55°C to +125°C. It offers a current rating of 3.4 A per pin, combines shrouded and alignment pin options, and is lead-free and solderable. Suitable for PCB integration, it mates with socket strips or IDC cables, ensuring reliable and high-precision connections for modern electronic applications.
SAMTEC FTS11702LDS Low-profile Terminal Strip Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 µ
- Ni (1.27 µm)
- Operating Temp Range: -55°C to +125°C
- Current Rating: 3.4 A per pin
- Lead-Free: Yes
- Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (0.004 inches)
- Type: Low-profile surface-mount terminal strip
- Mates with: Socket strips and IDC cables
- Pitch: 1.27 mm (.050 inches)
- Surface Mount or Through-Hole compatible
- Shrouded and Alignment Pin options available
- Impedance matched for high-speed applications
- Number of positions varies per model, e.g., 7, 12, 24
- Maximum length options depend on model, e.g., 6.98 inches or 8.05 inches
- Certification: Recognized per industry standards
- Design: Compatible with high-speed digital and analog signals
Buy the Buy Samtec FTS11702LDS Part Number FTS11702LDS Online
Secure your electronic connections with the Samtec Low-profile Terminal Strip FTS11702LDS. Designed for high-speed digital signals, its impedance-matched, gold-plated contacts ensure reliable performance across a wide temperature range. This SMT-compatible component features black liquid crystal polymer insulation, phosphor bronze contacts, and lead-free solderability, making it ideal for PCB mounting in compact, high-performance devices. With shrouded and alignment pin options, it offers flexibility for various applications, delivering durability, precision, and quick installation in modern electronic systems.
Order your Samtec Series FTS11702LDS low-profile terminal strip today and ensure your PCB connections are high-speed, reliable, and easy to assemble.
Frequently Asked Questions
Where can I buy SAMTEC FTS11702LDS?
You can click on the BUY or RFQ button to purchase FTS11702LDS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTS11702LDS?
You can download the FTS11702LDS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTS11702LDS?
SAMTEC
