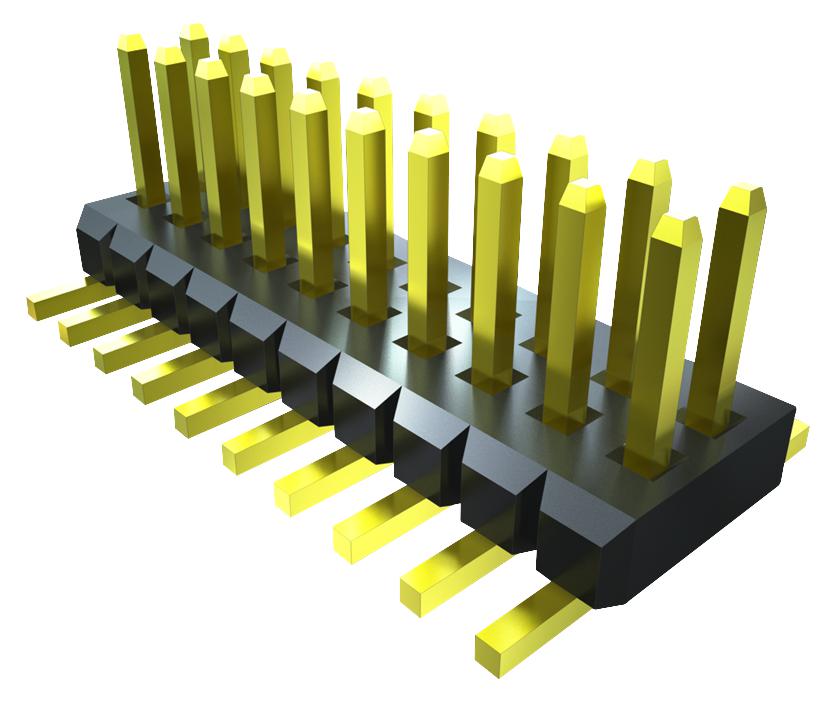

SAMTEC FTS12501FMDV High-Speed Micro Pitch Terminal Connector
The FTS12501FMDV is a high-performance, low-profile terminal connector designed for SMT assembly with micro pitch 0.050" x 0.050" (1.27 mm x 1.27 mm). Made with black Liquid Crystal Polymer insulator and phosphor bronze terminals, it features gold over nickel plating, operates from -55°C to +125°C, and supports high-speed impedance matching for reliable data transfer. Compatible with socket strips or IDC cables, it offers alignment options, shrouded variants, and is lead-free and solderable, ideal for precision electronic and automation applications.
SAMTEC FTS12501FMDV High-Speed Micro Pitch Terminal Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Operating Temperature Range: -55°C to +125°C
- Plating: Sn over 50 μin Ni
- Current Rating: 3.4 A per pin
- SMT Lead Coplanarity: 0.004" (0.10 mm) max
- Surface Mount or Through-Hole Design
- Compatible with socket strips and IDC cables
- Micro pitch 0.050" x 0.050" (1.27 mm x 1.27 mm)
- Shrouded and alignment pin options available
- Impedance matched for high-speed data transfer
- Lead-Free, Solderable, RoHS Compliant
- Various length, style, and option configurations available
- Designed for high-speed, reliable electronic connections
Buy the Buy Samtec FTS12501FMDV Part Number FTS12501FMDV Online
Enhance your electronic assembly with the high-speed, low-profile terminal connector. Featuring a micro pitch of 0.050" x 0.050", it is ideal for PCB mounting in compact, high-frequency applications. The connector is made with durable phosphor bronze contacts, gold-plated for excellent conductivity, and operates from -55°C to +125°C. Its lead-free and solderable design ensures compliance with industry standards while providing reliable, impedance-matched connections for data-intensive systems. Perfect for automation, instrumentation, or consumer electronics projects, order online for quick delivery.
Get Samtec FTS12501FMDV today—built for high-speed performance and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC FTS12501FMDV?
You can click on the BUY or RFQ button to purchase FTS12501FMDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTS12501FMDV?
You can download the FTS12501FMDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTS12501FMDV?
SAMTEC
