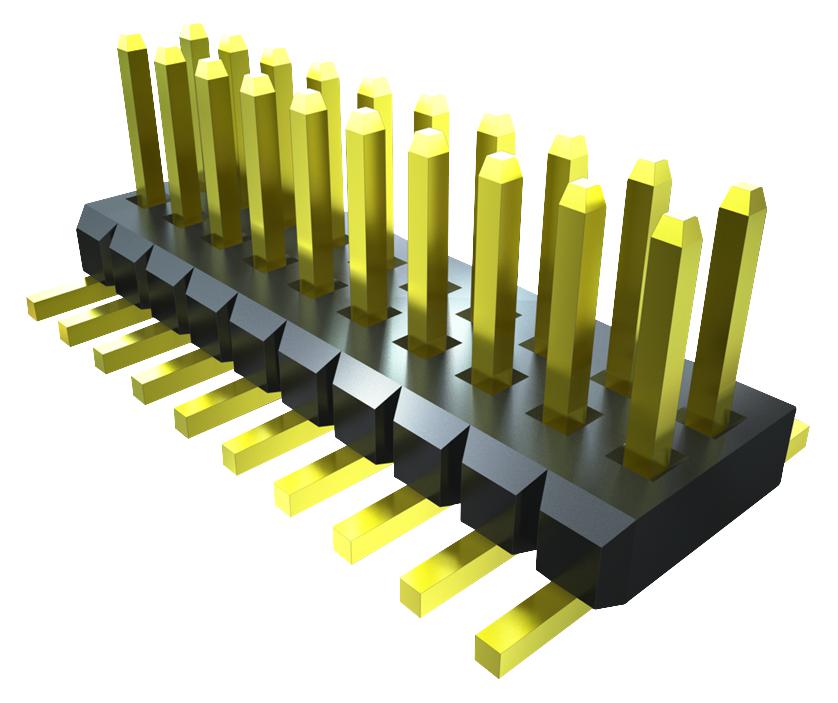

SAMTEC FTS14401LDV Micro Low Profile Terminal Strip Headers
The FTS series from Samtec features micro low-profile terminal strip headers designed for reliable connections in compact electronic assemblies. These headers are compatible with Samtec FFSD, CLP, and FLE series connectors and come in various post heights. With a pitch of 1.27mm, they support between 2 to 50 contacts per row and are available in double-row vertical SMT configurations (-DV). Made from phosphor bronze contacts with a black liquid crystal polymer insulator, they can operate in temperature ranges from -55°C to 125°C. Each contact is gold-plated with a 10-micron thickness, supports a current of 3.3A, and complies with UL E111594 standards. Suitable for industrial applications, these headers ensure durable and reliable performance in demanding environments.
SAMTEC FTS14401LDV Micro Low Profile Terminal Strip Headers Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Operating Temperature Range: -55°C to 125°C
- Plating: Sn or Au over 50µ
- (1.27 µm) Ni
- Current Rating: 3.3 A per pin
- Number of Pins: 2 to 50, supported in various configurations
- Pitch: 1.27 mm
- Mounting Style: Surface Mount and Through-Hole options available
- Shrouded and Alignment Pin options available
- RoHS Compliant: Yes
- Lead-Free Solderability: Yes
- Contact Resistance: Low impedance matched for high-speed applications
- Certifications: UL E111594
- Maximum SMT Lead Coplanarity: 0.004 inch (0.10 mm)
Buy the Buy Samtec FTS Series Micro Low Profile Terminal Strip Headers Part Number FTS14401LDV Online
Secure your electronic assembly with Samtec FTS series micro low-profile terminal strip headers. Engineered with 1.27mm pitch, gold-plated contacts, and a robust operating temperature from -55°C to 125°C, these connectors support 3.3A per pin, ensuring dependable power transfer and signal integrity. They feature black Liquid Crystal Polymer insulators, versatile SMT and through-hole mounting options, and compliance with RoHS and UL standards. Perfect for space-constrained applications demanding high reliability and performance in industrial environments, these headers provide seamless and durable connections, available for quick ordering online.
Order your Samtec FTS14401LDV series micro low-profile terminal strip headers today and ensure durable, high-speed connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC FTS14401LDV?
You can click on the BUY or RFQ button to purchase FTS14401LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTS14401LDV?
You can download the FTS14401LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTS14401LDV?
SAMTEC
