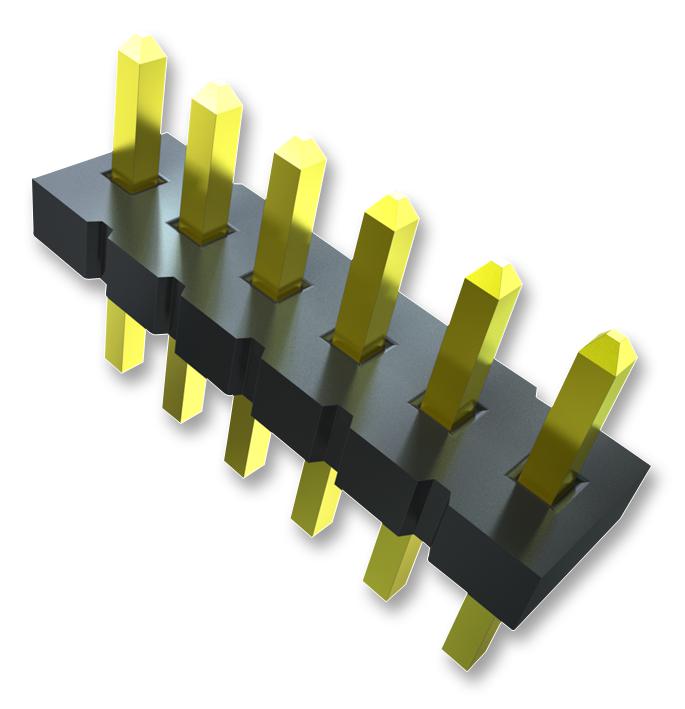

SAMTEC FTS14501LD Micro Low-Profile Terminal Strip Headers
The FTS series from Samtec features micro low-profile terminal strip headers designed for PCB connections, compatible with Samtec FFSD, CLP, and FLE series connectors. They offer a 1.27mm pitch, 2 to 50 contacts per row, and double-row through-hole mounting (-D). Constructed with phosphor bronze contacts and a black liquid crystal polymer insulator, these headers support temperatures from -55°C to 125°C. Gold-plated contacts ensure reliable conductivity, rated at 3.3A, and they comply with UL standards, making them ideal for high-density, industrial-electronic applications.
SAMTEC FTS14501LD Micro Low-Profile Terminal Strip Headers Specifications:
- Material: Phosphor Bronze contacts
- Insulator Material: Black Liquid Crystal Polymer
- Operating Temperature Range: -55°C to +125°C
- Plating: Gold over 50 microinches of Nickel
- Current Rating: 3.3A per pin
- Mounting Type: Surface Mount or Through-Hole
- Pitch: 1.27mm (0.050")
- Number of Pins: 2 to 50 per row
- Design: Double-row, shrouded and alignment pin options available
- Compliance: RoHS and UL E111594
- Additional Options: Different lengths, styles, and non-standard configurations available upon request
Buy the Samtec FTS14501LD – Reliable Micro Low-Profile Terminal Headers for Industrial Applications
Order the Samtec FTS14501LD micro low-profile terminal headers online today for your high-density PCB needs. These connectors feature a 1.27mm pitch, gold-plated contacts, and a rugged liquid crystal polymer insulator ensuring reliable conductivity and high temperature tolerance. Perfect for industrial electronics, they support up to 3.3A per pin and are compatible with various connector series. Shop now to enhance your electronic assemblies with quality, durability, and ease of installation, all available for quick delivery online.
Get Samtec FTS14501LD today—built for precision and long-lasting durability in PCB connections and high-density electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC FTS14501LD?
You can click on the BUY or RFQ button to purchase FTS14501LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTS14501LD?
You can download the FTS14501LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTS14501LD?
SAMTEC
