SAMTEC FTS14801LDV Micro Terminal Headers

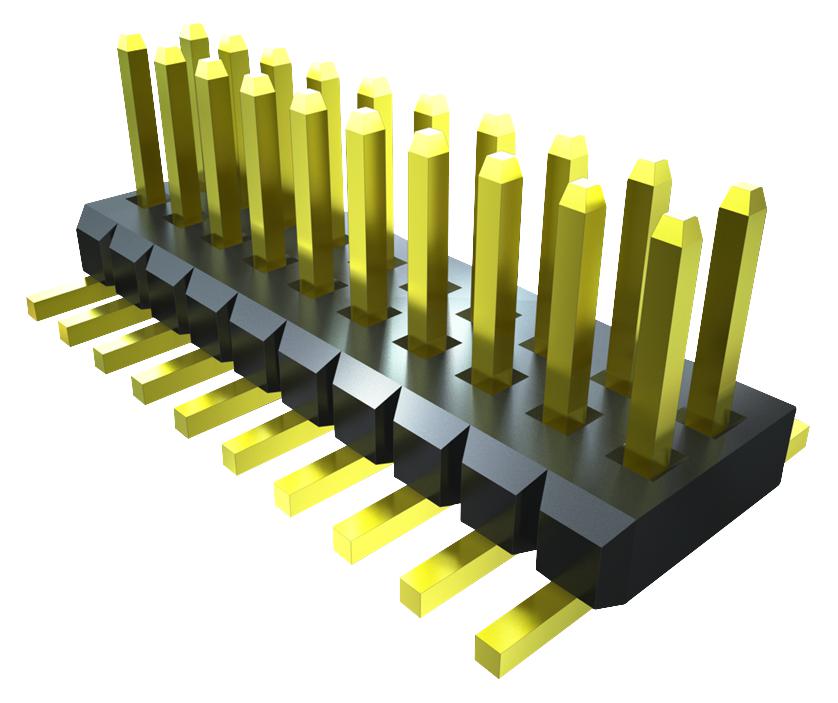

The FTS series from Samtec encompasses micro low-profile terminal strip headers ideal for compact and high-density electronic assemblies. These connectors support 2 to 50 contact positions, featuring a 1.27mm pitch for precise applications. Made with phosphor bronze contacts and gold-plated for superior conductivity, they are housed in durable black liquid crystal polymer insulators. Rated for 3.3A current per pin and operating effectively from -55°C to 125°C, they comply with UL standards. Suitable for industrial, automation, and high-speed electronic interfaces, offering reliability and versatility in tight spaces.
SAMTEC FTS14801LDV Micro Terminal Headers Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50μ inch (1.27 μm) Ni
- Operating Temperature Range: -55°C to +125°C
- Current Rating: 3.3 A per pin
- Contact Pitch: 1.27 mm
- Number of Positions: 2 to 50
- Mounting Style: Surface-mount or through-hole
- RoHS Compliance: Yes
- Certifications: UL E111594
- Lead-Free Solderable: Yes
- Profile: Low-profile, various post heights
Buy the Samtec FTS-14801LDV – Reliable Micro Low-Profile Terminal Headers for Industrial Applications
Order the Samtec FTS series micro low-profile terminal headers online today. Designed for compact, high-speed electronic connections, these headers feature a 1.27mm pitch, gold-plated phosphor bronze contacts, and a robust liquid crystal polymer insulator. Rated at 3.3A per pin and capable of operating from -55°C to 125°C, they ensure reliable performance in demanding industrial and automation applications. Easy to install with surface-mount or through-hole options, these headers guarantee durable, high-quality electrical connections for your projects.
Get Samtec FTS-14801LDV today—built for precision, high-density connections, and long-lasting durability in industrial environments.
