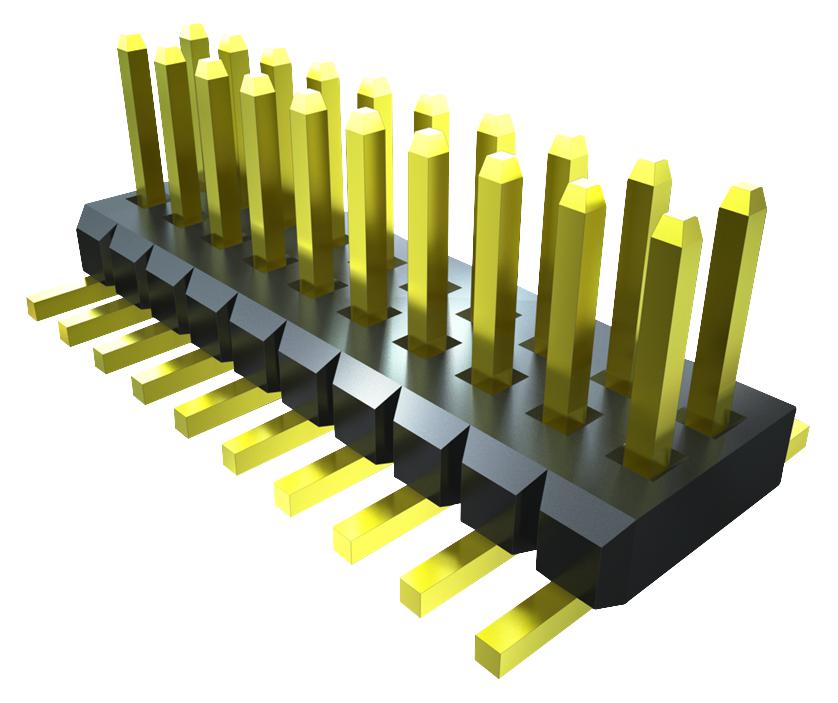

SAMTEC FTS14903LDV Micro Low Profile Terminal Strip
The FTS series from Samtec offers micro low-profile terminal strip headers perfect for compact industrial circuits. Featuring a 1.27 mm pitch, they support 2 to 50 pins in double-row SMT configuration with optional shrouded and alignment pin options. Made from phosphor bronze contacts and liquid crystal polymer insulators, these headers operate from -55°C to 125°C. Gold-plated contacts support 3.3A current per pin. Compatible with Samtec FFSD, CLP, and FLE connectors, they meet UL safety standards with RoHS compliance, ensuring durability and high-speed application suitability.
SAMTEC FTS14903LDV Micro Low Profile Terminal Strip Specifications:
- Pitch: 1.27 mm
- Number of pins: 2 to 50 per row
- Configuration: Double-row vertical SMT
- Contact Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer
- Operating Temperature Range: -55°C to +125°C
- Plating: Gold over 50 micro inches Ni
- Current Rating: 3.3 A per pin
- RoHS Compliant: Yes
- UL Standard: E111594
- Lead-Free Solderable: Yes
- Compatibility: Samtec FFSD, CLP, FLE connectors
- Shrouded and Alignment Pin options available
- Mounting: Surface Mount or Through-Hole
Buy the Samtec Series FTS Micro Low Profile Terminal Strips: FTS14903LDV
Purchase the Samtec Micro Low Profile Terminal Strip headers online today to ensure reliable, high-performance connections in compact electronic systems. Designed with precision for industrial use, these headers feature a 1.27 mm pitch, accommodate 2 to 50 contacts, and are compatible with popular Samtec connectors. Made from durable phosphor bronze and liquid crystal polymer insulator, they operate up to 125°C. Gold-plated contacts provide excellent conductivity and longevity, supporting high-speed applications with a 3.3A current rating, RoHS compliance, and UL safety standards for versatile use.
Get Samtec Series FTS14903LDV today—built for precision and long-lasting durability in industrial and high-speed electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC FTS14903LDV?
You can click on the BUY or RFQ button to purchase FTS14903LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTS14903LDV?
You can download the FTS14903LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTS14903LDV?
SAMTEC
