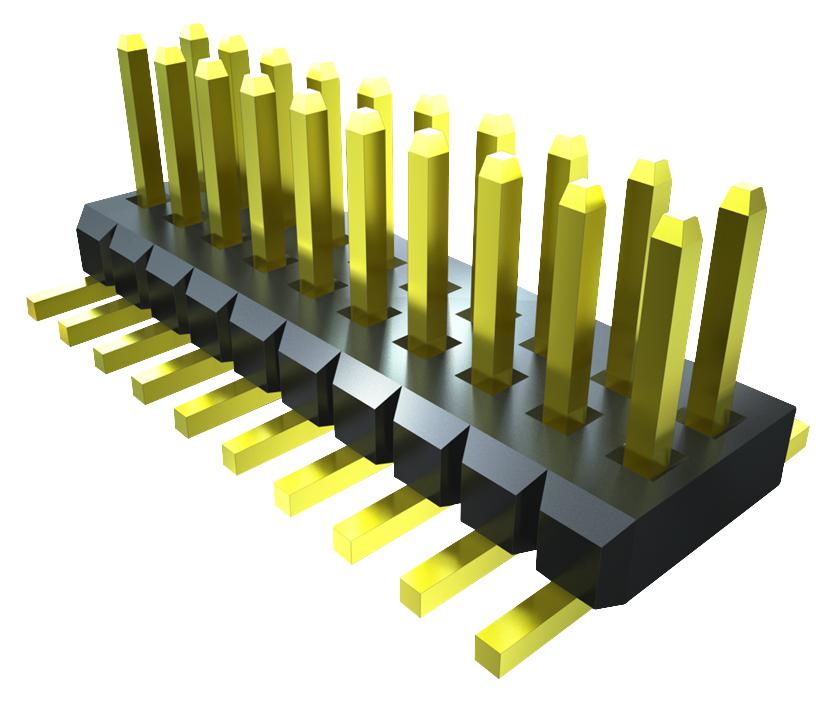

SAMTEC FTS15001FDVP High-Speed Surface Mount Terminal
The FTS15001FDVP is a high-performance, low-profile SMT terminal designed for high-speed, impedance-matched applications in industrial and electronic systems. Crafted with black liquid crystal polymer insulator and phosphor bronze contacts, it supports operating temperatures from -55°C to +125°C. Plated with gold over nickel, it offers reliable connectivity with a current rating of 3.4 A per pin. Suitable for surface-mount or through-hole configurations, it features optional shrouded and alignment pin options, ensuring excellent performance and durability in demanding environments.
SAMTEC FTS15001FDVP High-Speed Surface Mount Terminal Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Operating Temp Range: -55°C to +125°C
- Plating: Gold over 50 μin (1.27 μm) Nickel
- Current Rating: 3.4 A per pin
- Surface Mount or Through-Hole Mounting
- Micro pitch 0.050" x 0.050" (1.27 mm x 1.27 mm)
- Lead-Free Solderable: Yes
- Reflow Compatibility: Yes
- Impedance Matched for High-Speed Applications
- Optional Shrouded and Alignment Pin Options Available
- Board Mates: Socket strips or IDC cables
- Maximum SMT Lead Coplanarity: 0.004" (0.10 mm)
Buy the Samtec FTS15001FDVP – Reliable High-Speed Connectors for Industrial Applications
Enhance your electronic assemblies with the Samtec FTS15001FDVP high-speed low-profile terminal. Designed for durability and precise impedance matching, it ensures dependable data transmission in industrial, high-speed, and electronic systems. Easily mounted on surface or through-hole boards, it supports lead-free soldering and offers optional shrouded and alignment features for enhanced protection. Ideal for applications requiring high current, temperature resilience, and compact design, this terminal guarantees robust performance across various demanding environments.
Order your Samtec FTS15001FDVP series high-speed terminal today and ensure reliable connections in your industrial and electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC FTS15001FDVP?
You can click on the BUY or RFQ button to purchase FTS15001FDVP from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTS15001FDVP?
You can download the FTS15001FDVP datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTS15001FDVP?
SAMTEC
