SAMTEC FTS15001SDV Micro Pitch Terminal

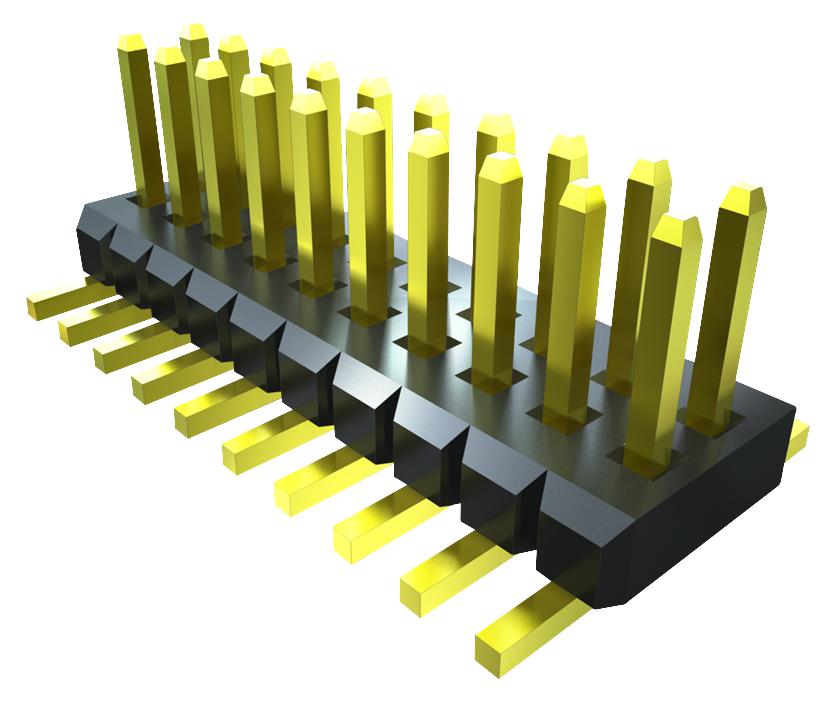

The product is a high-speed, low-profile terminal connector featuring a micro pitch of 0.050 inches (1.27 mm). Made with Phosphor Bronze contact material and a black Liquid Crystal Polymer insulator, it offers excellent thermal stability from -55°C to +125°C. Plated with Spor Au over 50 μm nickel, it supports up to 3.4 A per pin and is fully compliant with high-speed impedance matching standards. Suitable for surface mount or through-hole applications, it mates with socket strips, IDC cables, and offers shrouded and alignment pin options for versatile PCB interconnection.
SAMTEC FTS15001SDV Micro Pitch Terminal Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Operating Temp Range: -55°C to +125°C
- Plating: Spor Au over 50 μm nickel
- Current Rating: 3.4 A per pin
- Surface Mount or Through-Hole
- Micro Pitch: 0.050 inches (1.27 mm)
- Impedance Matched for High-Speed Applications
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.004 inches (0.10 mm)
- Compatible with socket strips, IDC cables, and shrouded options
- Various length, style, and option variations available
- Shrouded and alignment pin options available
- Certifications: Consult manufacturer for recognized standards
Buy the Samtec FTS15001SDV – Reliable Micro Pitch Terminal for Industrial Applications
Purchase the versatile, high-speed micro pitch terminal connector online today. Designed for PCB applications, it features a 0.050-inch pitch, Phosphor Bronze contacts, and a Liquid Crystal Polymer insulator for durability. Its gold over nickel plating ensures excellent corrosion resistance, while its compatibility with surface mount and through-hole configurations makes it ideal for diverse industrial needs. Order now to experience precise, reliable connections suitable for demanding electronic systems and high-speed data applications, all with the convenience of online shopping.
Get Samtec FTS15001SDV today—built for high-speed, reliable connections with low-profile SMT design.
