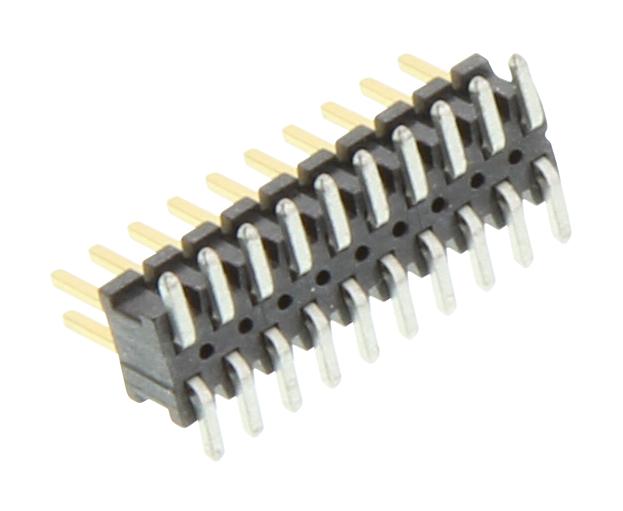

SAMTEC FTSH10501FDV007KP Surface Mount Connector
The FTSH series offers ultra-low profile, surface-mount connectors with options for shrouds, latches, and various plating finishes, designed for high-density PCB applications. Built with black Liquid Crystal Polymer insulators and phosphor bronze contacts, these connectors support current ratings of 3.4 A per pin and operate within -55°C to +125°C. They feature optional tail, end shrouds, and molded pick & place pads, making them ideal for compact, reliable connections in modern electronic assemblies. RoHS compliant and available in multiple configurations for diverse industry needs.
SAMTEC FTSH10501FDV007KP Surface Mount Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or AU over 50 1" (1.27 um) Ni
- Current Rating: 3.4 A per pin
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Available Options: Tail, end shrouds, molded pick & place pads, latches, various platings
- Number of positions: 2 to 25, with diverse post sizes and configurations
- Surface Mount, optional shrouds, and micro pitch ejector shrouds available
Buy the Samtec Series FTSH Connectors: FTSH10501FDV007KP
Purchase the Samtec FTSH10501FDV007KP surface-mount connector online today and ensure your electronic assemblies are equipped with high-density, reliable connections. These connectors feature ultra-low profile design, versatile options such as shrouds, latches, and various platings, supporting current ratings of 3.4 A per pin and operating efficiently from -55°C to +125°C. Ideal for compact PCB layouts, they are RoHS compliant, easy to assemble, and suitable for a range of demanding electronic applications. Order now to enhance your project’s reliability and performance.
Get Samtec FTSH10501FDV007KP today—built for high-density, reliable, surface-mount connections with optional shrouds and high current capacity.
Frequently Asked Questions
Where can I buy SAMTEC FTSH10501FDV007KP?
You can click on the BUY or RFQ button to purchase FTSH10501FDV007KP from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH10501FDV007KP?
You can download the FTSH10501FDV007KP datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH10501FDV007KP?
SAMTEC
