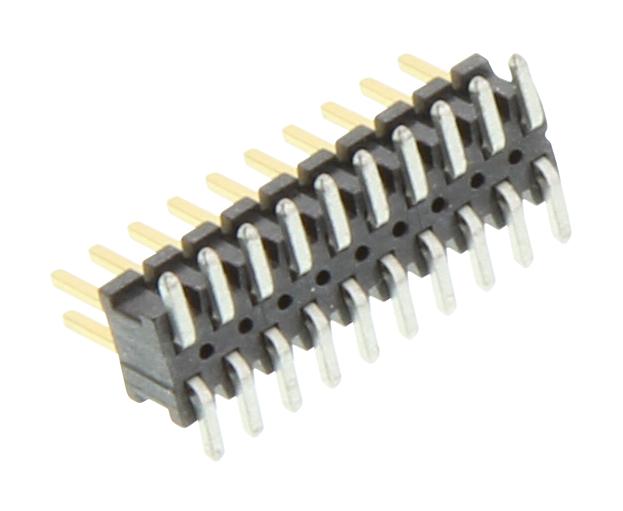

SAMTEC FTSH10501LMDVK Micro Pitch Connector
The FTSH series connectors are compact, high-density surface-mount connectors with a micro pitch of 1.27 mm, made with insulator material Liquid Crystal Polymer and terminal material phosphor bronze. They feature gold plating over nickel for reliable connection, and support current ratings up to 3.4 A per pin. Suitable for applications requiring surface mount technology, they offer extended life, ultra-low profile, and optional shrouds. Ideal for high-density electronic assemblies, these connectors are RoHS compliant and lead-free, providing excellent performance across -55°C to +125°C operating temperature range.
SAMTEC FTSH10501LMDVK Micro Pitch Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold over Nickel
- Current Rating: 3.4 A per pin
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 1.27 mm
- Surface Mount: Yes
- Maximum Flammability: UL 94V-0
- Contact Material: Phosphor Bronze
- Max Current per Pin: 3.4 A
- Temperature Rating: -55°C to +125°C
- Packaging: Surface mount, optional shrouds, and ejector shrouds available
Buy the Buy Samtec FTSH Part Number FTSH10501LMDVK Online
Purchase the Samtec FTSH series Micro Pitch Connector online today for reliable, high-density connections with gold plating and extended lifespan. Designed for surface mount technology, these connectors support currents up to 3.4 A per pin, ensuring robust electrical performance. They are RoHS compliant, lead-free, and operate across a temperature range of -55°C to +125°C. Ideal for compact electronic devices, they feature optional shrouds, molded pick-and-place pads, and compatibility with multiple board and cable mates. Order now for quick delivery and seamless integration into your projects.
Buy Samtec FTSH10501LMDVK now and experience unmatched reliability and high-density performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC FTSH10501LMDVK?
You can click on the BUY or RFQ button to purchase FTSH10501LMDVK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH10501LMDVK?
You can download the FTSH10501LMDVK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH10501LMDVK?
SAMTEC
