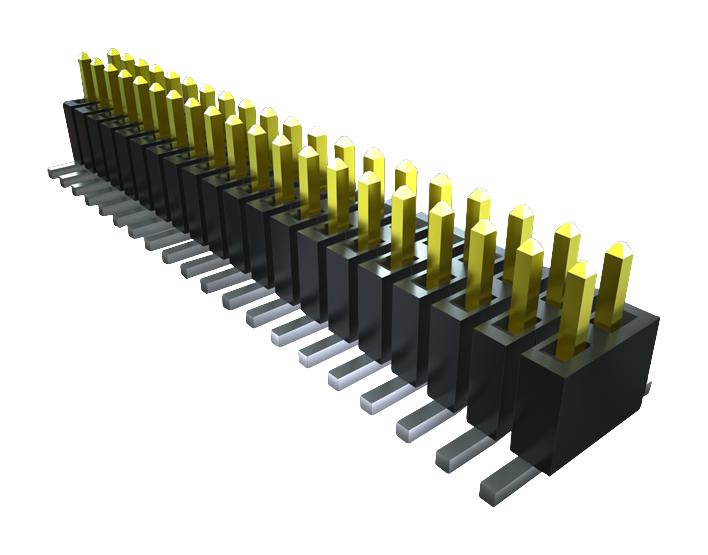

SAMTEC FTSH10801LDK Micro Header
High-speed through-hole micro header designed for board-to-board connections with impedance matching and Gold-plated contacts for reliable signal transmission. Insulated with black Liquid Crystal Polymer, it features phosphor bronze terminals with Gold plating for durability and corrosion resistance. Suitable for applications requiring board mates for 1.27 mm pitch, the micro header supports optional end shrouds and lead-free solderable options, offering flexible configurations, including right-angle or straight mounting, to meet various design needs in high-speed electronic assemblies.
SAMTEC FTSH10801LDK Micro Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze with Gold plating
- Operating Temp Range: -55°C to +105°C
- Pitch: 1.27 mm
- Number of Positions: 10 pins/row minimum, up to 20 pins/row
- Mounting Style: Through-hole, right-angle or straight
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Contact Rating: 3.4 A per pin
- Additional options include end shrouds and keying features
- Compatible with cable mates: CLP Series with impedance matching
- Plating Options: Gold over nickel, tin over other finishes
- Dimensions vary with configuration, typical tail length approximately 4.0 mm
- Certifications: RoHS
Buy the Buy Samtec Micro Header Part Number FTSH10801LDK Online
Experience the convenience of online purchasing with the Samtec FTSH10801LDK micro header. Designed for high-speed electronic applications, it features Gold-plated contacts, an advanced Liquid Crystal Polymer insulator, and versatile mounting options including through-hole and right-angle. Its impedance matching and lead-free solderable construction ensure durability and performance. Ideal for PCB connections requiring precise pin placement and reliability, this micro header supports various configurations and optional end shrouds. Order now to streamline your assembly process and enhance product reliability.
Buy Samtec FTSH10801LDK micro header now and ensure high-speed, reliable electronic connections with advanced features and flexible configurations.
Frequently Asked Questions
Where can I buy SAMTEC FTSH10801LDK?
You can click on the BUY or RFQ button to purchase FTSH10801LDK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH10801LDK?
You can download the FTSH10801LDK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH10801LDK?
SAMTEC
