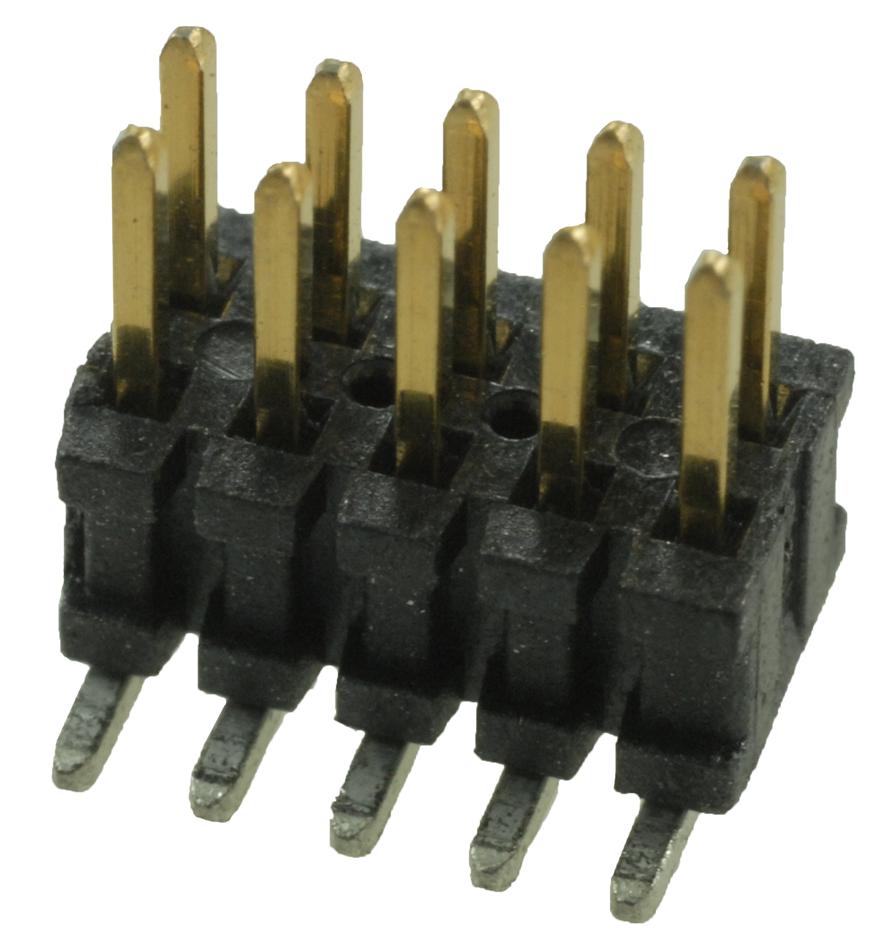

SAMTEC FTSH10801LDVK Micro Pitch SMT Connector
The FTSH series is a high-density, micro pitch SMT connector designed for reliable board-to-board connections. Crafted with black liquid crystal polymer insulators and phosphor bronze terminals, it features gold flash over 50 µin Ni plating for excellent conductivity and corrosion resistance. Capable of handling up to 3.4 A per pin, this rugged connector operates effectively within -55°C to +125°C. Its compact, low-profile design includes molded pick & place pads, positive locking features, and optional end shrouds, making it ideal for space-constrained electronic assemblies needing high durability and precise alignment.
SAMTEC FTSH10801LDVK Micro Pitch SMT Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold flash over 50 µin Ni
- Current Rating: 3.4 A per pin
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Contact Pitch: 1.27 mm (0.050 inch)
- Max Lead Coplanarity: 0.004 inch (0.10 mm), 0.006 inch (0.15 mm) with stencil options
- Connector Height: Approximate 2.92 mm to 6.84 mm depending on style
- Connector Width: Variable based on number of positions, style options available
- Board Mount: Surface mount with positive lock features
- End Shrouds and optional guides available for secure connection
- Compatibility: Mates with various Samtec series connectors including CLP and FLE
Buy the Buy Samtec FTSH Series Micro Pitch SMT Connector Part Number FTSH10801LDVK Online
Purchase the Samtec FTSH series micro pitch SMT connector FTSH10801LDVK online today to ensure your electronics project benefits from reliable, high-density connection solutions. This connector features a 1.27mm pitch, gold flash plating for superior conductivity, and operates across a wide temperature range of -55°C to +125°C. Its RoHS compliance guarantees environmental safety, while its compact design with molded pick & place pads simplifies assembly. Ideal for space-constrained applications, this connector delivers dependable mechanical and electrical performance, enhancing overall device reliability and longevity.
Order your Samtec FTSH series FTSH10801LDVK today and enhance your electronic assemblies with this high-density, durable connector designed for space-efficient, reliable connections.
Frequently Asked Questions
Where can I buy SAMTEC FTSH10801LDVK?
You can click on the BUY or RFQ button to purchase FTSH10801LDVK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH10801LDVK?
You can download the FTSH10801LDVK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH10801LDVK?
SAMTEC
