SAMTEC FTSH11001FDV Board-to-Board Connector
The FTSH series connectors are high-speed, low-profile board-to-board connectors crafted with black Liquid Crystal Polymer insulators and phosphor bronze contacts. These connectors support current ratings of 3.4 A per pin and operate effectively within -55°C to +125°C temperature ranges. They feature various plating options like Sn or Au over Ni, and multiple configurations for different post and shroud options, including micro pitch and extended life variants. Ideal for compact, high-reliability electronic applications requiring precise mating and durability.
SAMTEC FTSH11001FDV Board-to-Board Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 1" Ni
- Current Rating: 3.4 A per pin
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Contact Pitch: 1.27 mm (0.050")
- Post Sizes Available: 0.81 mm to 4.78 mm
- Optional end shrouds and micro pitch ejector shrouds available
- Compatibility: Board mates, cable mates, and flexible shrouds
- Surface mount and through-hole options
- Headroom for various configurations: 2, 3, 4, 5, 6, 7 positions, etc.
- Designed for high-density applications with reliable positive alignment
- Various styling options include extended life, molded pick & place pads, and latches
- Due to design updates, specifications may change without notice, and customer approval is required for custom requirements

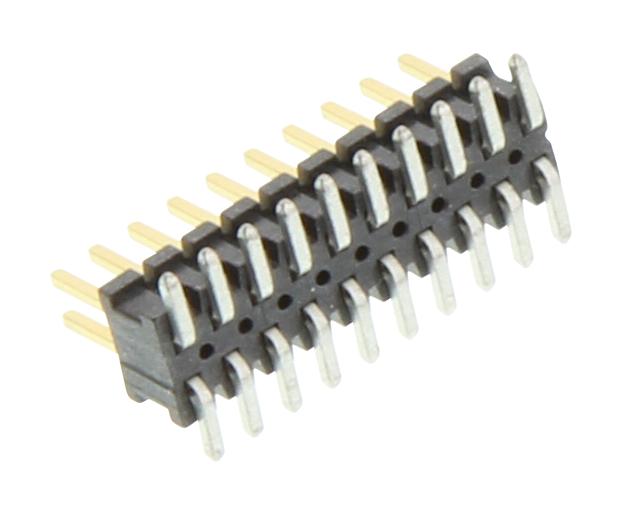

Buy the Buy Samtec FTSH Series Part Number FTSH11001FDV Online
Enhance your electronic assemblies with the high-quality, compact board-to-board connector from Samtec’s FTSH series. Engineered with Liquid Crystal Polymer insulators and phosphor bronze contacts, this connector offers a current rating of 3.4 A per pin and operates from -55°C to +125°C for demanding environments. Its versatile configurations include micro pitch, shrouded options, and extended life variants, making it ideal for high-density, reliable connections. Purchase online today to ensure seamless integration and superior performance in your applications.
Buy Samtec FTSH11001FDV now and experience unmatched reliability, high-speed performance, and compact design for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC FTSH11001FDV?
You can click on the BUY or RFQ button to purchase FTSH11001FDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH11001FDV?
You can download the FTSH11001FDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH11001FDV?
SAMTEC
