SAMTEC FTSH11003FDV Connector System
The FTSH series is a high-performance, ultra-low profile surface-mount connector system with gold-flashed phosphor bronze contacts, black liquid crystal polymer insulators, and shrouded configurations. Designed for reliable PCB connections, it features flexible shroud options, positive lock features, and compatibility with various mating styles. Capable of handling up to 3.4 A per pin at temperatures from -55°C to +125°C, this connector offers robust RoHS compliance, lead-free solderability, and customizable options including end shrouds and ejector shrouds, suitable for demanding electronic assemblies and high-density applications.
SAMTEC FTSH11003FDV Connector System Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold Flash over 50 µin Ni
- Current Rating: 3.4 A per pin (2 pins powered)
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Surface Mount Design: SMT compatible with coplanarity ±0.10 mm (0.004") and ±0.15 mm (0.006") options
- Contact pitch: 1.27 mm (.050")
- Max Dimensions: Varies with configuration, typical post length approximately 4.83 mm (0.190")
- Different configurations include shrouded, flexible shroud, end shrouds, and ejector shrouds for added protection and alignment.
- Mechanical features include positive lock latches, molded pick & place pads, and compatibility with various mating parts.

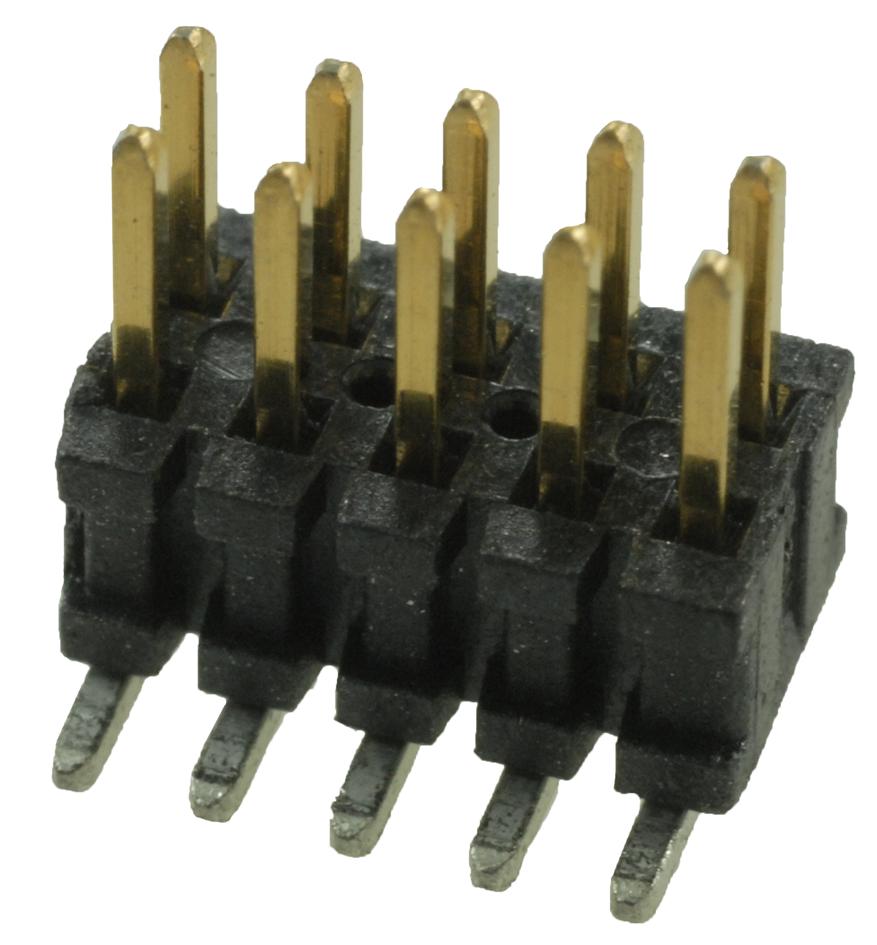

Buy the Buy Samtec FTSH Series FTSH11003FDV Part Number FTSH11003FDV Online
Discover the reliable Samtec connector system designed for high-density electronic assemblies. The FTSH series features gold-flashed phosphor bronze contacts, a black liquid crystal polymer insulator, and an ultra-low profile footprint, supporting up to 3.4 A per pin. Its versatile configurations include shrouded, flexible shroud, end shrouds, and ejector shrouds that deliver enhanced protection and precise mating. Built to meet RoHS standards, it is suitable for demanding industrial, commercial, and computing applications requiring robust, lead-free, surface-mount connectivity solutions.
Order your Samtec Series FTSH11003FDV connector today and ensure reliable high-density PCB connections with robust shrouded options and high current carrying capacity.
Frequently Asked Questions
Where can I buy SAMTEC FTSH11003FDV?
You can click on the BUY or RFQ button to purchase FTSH11003FDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH11003FDV?
You can download the FTSH11003FDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH11003FDV?
SAMTEC
