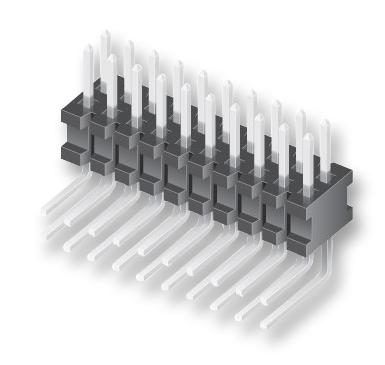

SAMTEC FTSH11101LDRA Micro Terminal Header
The FTSH series from Samtec features reliable through-hole micro terminal strip headers with a 1.27mm pitch, compatible with Samtec FFSD, FFTP, CLP, and FLE connectors. Constructed from phosphor bronze with gold or tin plating, these headers have a black liquid crystal polymer insulator, ensuring durability and stability from -55°C to 125°C. Designed for various configurations including end shroud, guide post, and keying options, they support up to 50 contacts per row, ideal for industrial and electronic equipment requiring secure, compact connections. UL and CSA compliant, suitable for demanding industrial environments.
SAMTEC FTSH11101LDRA Micro Terminal Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating Options: Sn or Au over 50u'' Ni
- Current Rating: 3.3 A per pin
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 1.27 mm
- Configurations: Up to 50 contacts per row
- Support for different mounting options including right-angle (-RA), end shroud, guide post, and keying
- Compatibility: Mates with connectors like FFSD, FFTP, CLP, FLE
- Standards: UL Listed, CSA Certified
Buy the Samtec FTSH11101LDRA – Reliable Micro Terminal Headers for Industrial Applications
Purchase the Samtec Micro Terminal Header today for secure, reliable connections in industrial equipment. Designed with a 1.27mm pitch, these headers feature high-quality phosphor bronze contacts with gold or tin plating, ensuring long-lasting performance. Their black liquid crystal polymer insulators support operating temperatures from -55°C to 125°C. Compatible with various Samtec connectors, they are RoHS compliant, lead-free, and suitable for space-constrained applications requiring robust, stable connections. Order now for fast online delivery and enhance your electronic assemblies with quality connectors.
Get Samtec FTSH11101LDRA today—built for precision, durability, and versatile connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC FTSH11101LDRA?
You can click on the BUY or RFQ button to purchase FTSH11101LDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH11101LDRA?
You can download the FTSH11101LDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH11101LDRA?
SAMTEC
