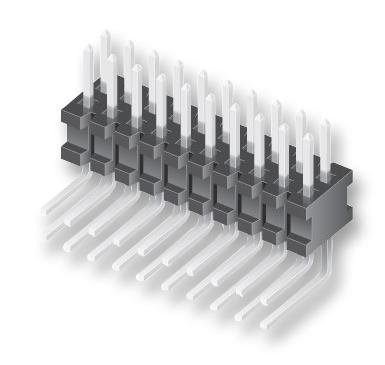

SAMTEC FTSH11404LDRA Micro Terminal Headers
The FTSH series from Samtec features high-quality through-hole micro terminal strip headers designed for reliable, compact connections in industrial electronics. These dual-row headers with 1.27mm pitch are compatible with connectors like FFSD, FFTP, CLP, and FLE series. Constructed with phosphor bronze contacts plated with 10 microns of gold, they are insulated with durable black liquid crystal polymer. Operating from -55°C to 125°C and compliant with UL and CSA standards, these headers are ideal for space-constrained, high-performance applications requiring precise and robust connections.
SAMTEC FTSH11404LDRA Micro Terminal Headers Specifications:
- Contact Material: Phosphor Bronze plated with 10 microns of gold
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating: 3.3 A per pin
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Pitch: 1.27 mm
- Number of Positions: 2 to 50 per row
- Mounting Style: Through-hole, right-angle
- Standards: UL Listed, CSA Certified
- Features: End shroud, guide post, ejector shroud, optional locking clip, quick connect compatibility
Buy the Buy Samtec FTSH Series Part Number FTSH11404LDRA Online
Discover the reliability of Samtec micro terminal headers with the FTSH series—featuring 1.27mm pitch, gold-plated contacts, and robust construction. These headers suit industrial applications requiring space-saving, high-capacity connection points. With options such as end shrouds, guide posts, and ejector shrouds, they ensure secure, quick assembly and durability. Operating within -55°C to +125°C, and complying with UL and CSA standards, these headers are ideal for high-performance, space-constrained electronic assemblies. Purchase online now for quick delivery and premium quality.
Buy Samtec FTSH11404LDRA now and experience unmatched reliability and high-performance connections in your industrial electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC FTSH11404LDRA?
You can click on the BUY or RFQ button to purchase FTSH11404LDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH11404LDRA?
You can download the FTSH11404LDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH11404LDRA?
SAMTEC
