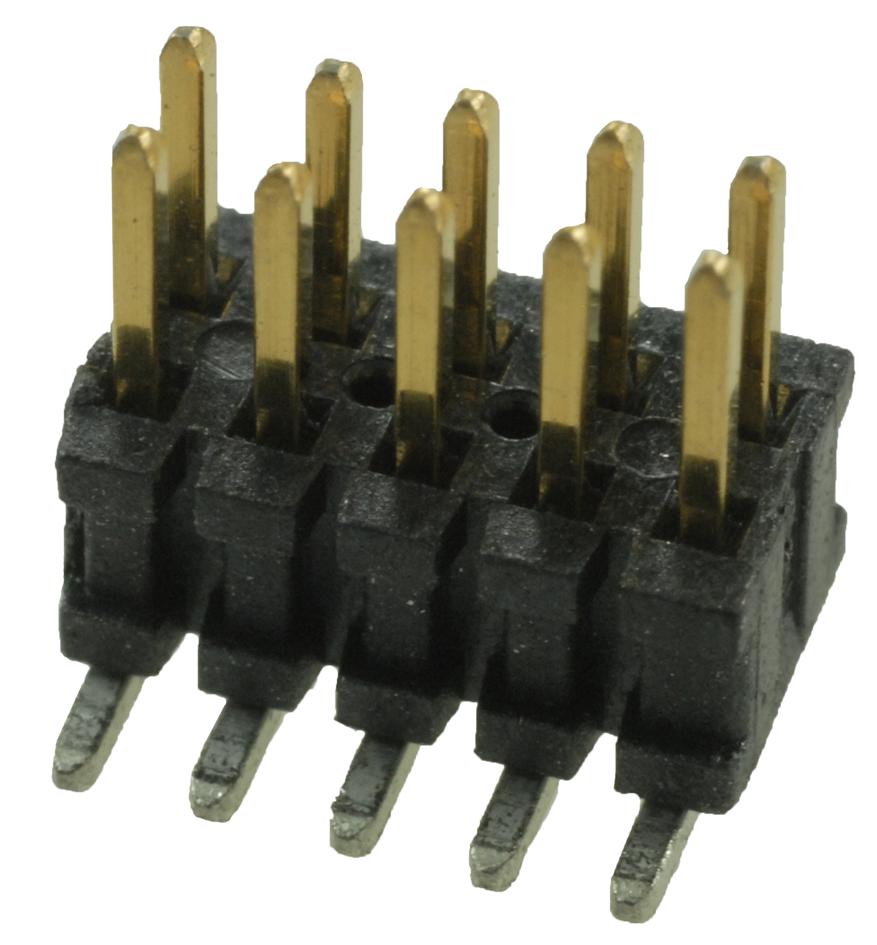

SAMTEC FTSH12803FDV Micro Pitch Connector
The FTSH12803FDV is a high-quality, surface-mount micro pitch connector designed for reliable electrical connections in industrial and electronic applications. Featuring a black liquid crystal polymer insulator and phosphor bronze terminals with gold over nickel plating, it ensures excellent conductivity and corrosion resistance. Operating within -55°C to +125°C, this RoHS-compliant connector supports up to 3.4 A per pin and offers various tail options for flexibility. Its compact, ultra-low profile design with molded pick & place pads makes it ideal for space-constrained assemblies, ensuring secure alignment and durable performance.
SAMTEC FTSH12803FDV Micro Pitch Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 μin Nickel
- Current Rating: 3.4 A per pin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Connector Type: Surface Mount, Micro Pitch
- Number of pins: 8
- Hardware: Molded pick & place pads, optional end shrouds, ejector shrouds
- Compatible with various tail options: -DV, -DH, -ES, -EJ
- Dimensions: Compact profile with post heights around 5.64 mm to 6.84 mm depending on style
- Surface Mount: Yes
- Application: Electronics, PCB, industrial automation, control systems
Buy the Samtec FTSH12803FDV – Reliable Micro Pitch Connector for Industrial Applications
Order the Samtec FTSH12803FDV connector online today to experience reliable, high-quality electrical connections for your industrial and electronic projects. Designed with a compact profile and gold-plated contacts, this surface-mount connector ensures excellent conductivity, corrosion resistance, and long-lasting durability. Its RoHS compliance and lead-free solder compatibility make it suitable for modern manufacturing requirements. Perfect for PCB assembly, control systems, and automation, this connector provides versatile tail options, secure alignment, and space-efficient solutions—order now for quick delivery and seamless integration into your designs.
Get Samtec FTSH12803FDV today—built for precision, durability, and space-saving electronic connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC FTSH12803FDV?
You can click on the BUY or RFQ button to purchase FTSH12803FDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH12803FDV?
You can download the FTSH12803FDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH12803FDV?
SAMTEC
