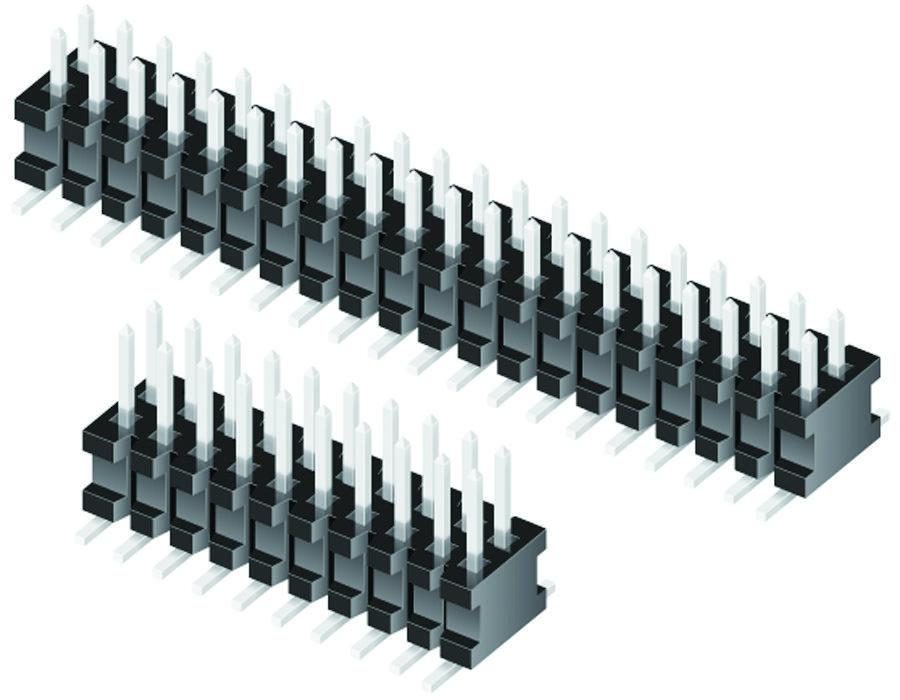

SAMTEC FTSH13001LDV Micro Header
The FTSH series from Samtec features high-quality surface-mount micro terminal headers suitable for diverse electronic applications. Constructed with phosphor bronze contacts and a black liquid crystal polymer insulator, these headers support a temperature range from -55°C to 125°C. They are compatible with Samtec connectors FFSD, FFTP, CLP, and FLE, offering configurations such as end shroud, guide post, and ejector shroud for flexible mounting options. With a 1.27mm pitch spacing and gold-plated contacts at 10 micro-inches, they ensure reliable, long-lasting connections for industrial and precision electronics.
SAMTEC FTSH13001LDV Micro Header Specifications:
- Pitch: 1.27mm (.050 inches)
- Contact Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer
- Plating: Gold flash at 10 micro-inches over Ni
- Current Rating: 3.3 A per pin
- Operating Temperature: -55°C to +125°C
- Configurations: multiple, including end shrouds and guide posts
- Compatibility: Supports Samtec FFSD, FFTP, CLP, FLE connectors
- RoHS Compliant: Yes
- Standards: UL E111594, CSA 090871
Buy the Samtec Series Micro Header: FTSH13001LDV
Order the Samtec FTSH13001LDV micro header today and ensure your electronic projects benefit from durable, precise, and versatile connection solutions. Designed with advanced materials and compatibility in mind, this micro header offers a 1.27mm pitch with gold-plated contacts for excellent conductivity. It supports a range of configurations, including end shrouds, guide posts, and ejector shrouds, making it suitable for industrial, automation, and high-density applications. Simplify assembly and improve reliability by purchasing online with confidence today.
Get Samtec FTSH13001LDV today—designed for reliable, high-density connections in compact electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC FTSH13001LDV?
You can click on the BUY or RFQ button to purchase FTSH13001LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH13001LDV?
You can download the FTSH13001LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH13001LDV?
SAMTEC
