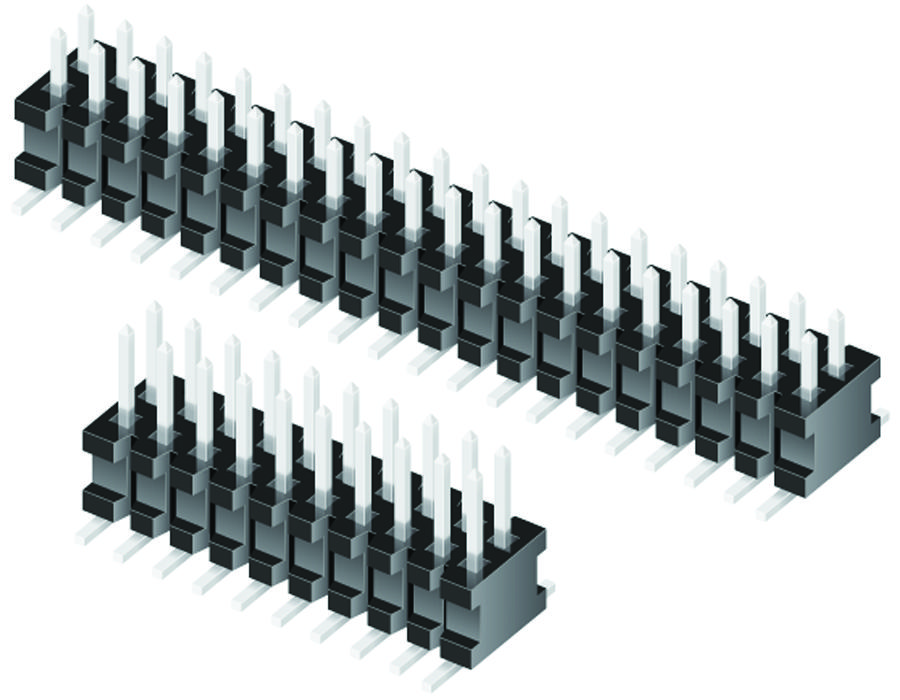

SAMTEC FTSH13501LDV Micro Terminal Header
The FTSH series from Samtec are surface mount micro terminal strip headers, ideal for precise connections in industrial electronics. They support multiple configurations, including end shrouds, lock clips, guide posts, and ejector options. With a 1.27mm pitch and support for 2 to 50 contacts per row, the headers operate efficiently from -55°C to 125°C. Made from phosphor bronze with a gold-plated, liquid crystal polymer insulator, they meet UL and CSA standards, ensuring reliable, long-lasting performance in demanding environments.
SAMTEC FTSH13501LDV Micro Terminal Header Specifications:
- Pitch: 1.27mm
- Contact Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer
- Plating: Gold over 50μ" Ni
- Current Rating: 3.3 A per pin
- Operating Temperature Range: -55°C to +125°C
- Standards: UL E111594, CSA 090871
- Configuration: Supports multiple options including end shrouds, guide posts, lock clips, and ejectors
- Number of contacts per row: 2 to 50
- Mounting Type: Surface Mount (SMT)
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Compliance: UL and CSA certifications
- Environmental conditions: Suitable for industrial applications with high reliability requirements
Buy the Samtec FTSH – Reliable Micro Terminal Headers for Industrial Applications
Order the Samtec FTSH series micro terminal headers now for dependable, high-quality connections. Designed with a 1.27mm pitch, they support up to 50 contacts per row, feature gold-plated contacts, and meet UL and CSA standards. With various options like end shrouds, guide posts, and ejectors, these headers are perfect for complex industrial electronics. Made from durable materials and rated for temperatures from -55°C to 125°C, they ensure reliable performance and easy integration. Purchase online today for fast delivery and trusted quality.
Get Samtec FTSH series headers today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC FTSH13501LDV?
You can click on the BUY or RFQ button to purchase FTSH13501LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH13501LDV?
You can download the FTSH13501LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH13501LDV?
SAMTEC
