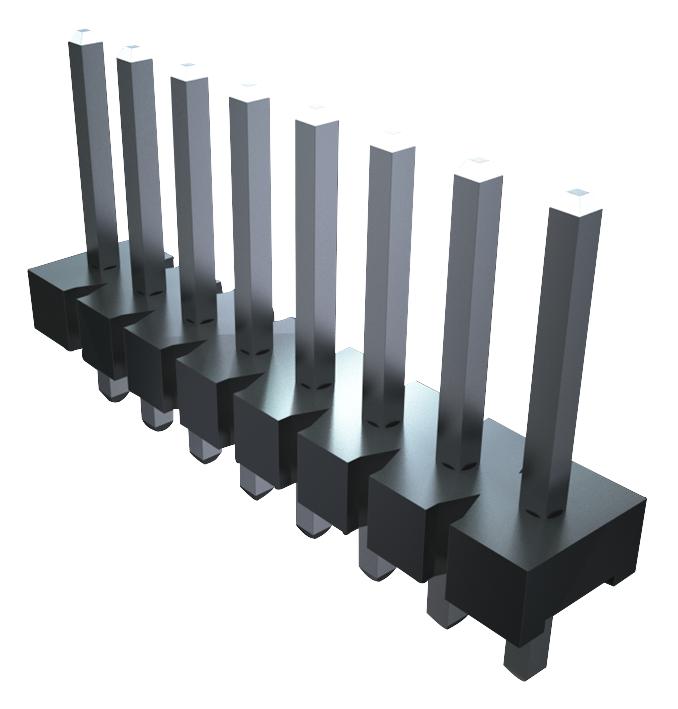

SAMTEC FWS2001TS Surface-Mount Connector
The FWS series is a family of high-quality, RoHS-compliant surface-mount connectors designed with glass-filled or liquid crystal polymer insulators and phosphor bronze terminals. They feature lead-free solderable processing, a temperature range of -55°C to +105°C, and a voltage rating of 500 V. Suitable for industrial applications, these connectors offer SMT lead coplanarity of up to 0.25 mm, with current ratings up to 11.4 A per pin, making them ideal for reliable electronic and control system connections.
SAMTEC FWS2001TS Surface-Mount Connector Specifications:
- Insulator Material: Glass Filled Polyester / Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn over 50u" Ni
- Current Rating: 11.4 A per pin
- Operating Temperature: -55°C to +105°C
- Voltage Rating: 500 V
- RoHS Compliant: Yes
- Processing: Lead-Free Soldérable
- SMT Lead Coplanarity: 0.20 mm (.008") max for styles 02-15, 0.25 mm (.010") max for styles 16-20
- Number of Positions: 6,08 (exact positioning depends on the style)
- Height Options: varies, including stacker height and height options
- Design and specifications are subject to change without notice
Buy the Samlec FWS2001TS – Reliable Surface-Mount Connectors for Industrial Applications
Order the Samlec FWS2001TS surface-mount connector online now to ensure high-quality, RoHS-compliant connection solutions for your industrial or electronic system requirements. These connectors feature lead-free solderability, a temperature range from -55°C to +105°C, and a robust current rating of 11.4 A per pin, making them perfect for demanding applications. Designed with glass-filled insulators and phosphor bronze terminals with Sn over Ni plating, they provide reliable electrical connectivity, durability, and easy assembly for your manufacturing needs.
Get Samlec FWS2001TS today—built for precision, high current capacity, and long-lasting durability in industrial electronics.
