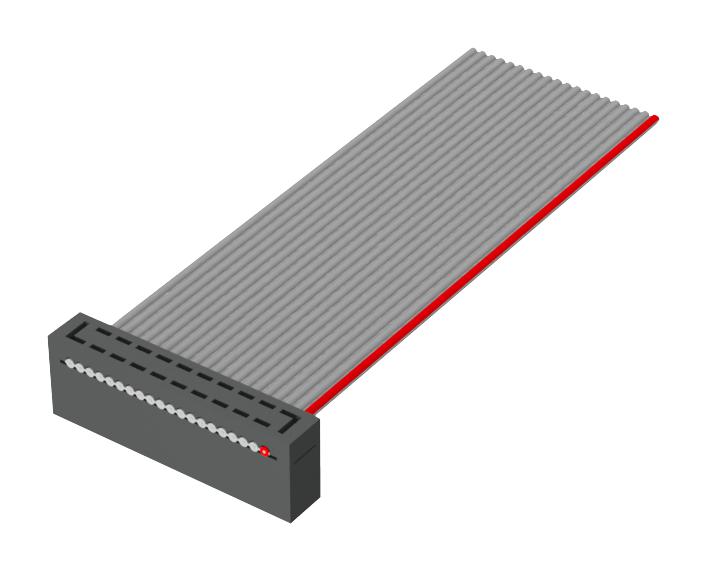

SAMTEC HCSD20D020001TNGR PCB Connector
The HCSD20D020001TNGR is a high-quality, liquid crystal polymer insulator connector designed for reliable PCB connections in industrial applications. It features phosphor bronze contacts with gold and nickel plating for optimal conductivity and corrosion resistance. Rated for temperatures from -20°C to +105°C and capable of withstanding up to 1000 VRMS at 60 Hz, this connector offers excellent electrical insulation, low contact resistance, and robust physical construction. Suitable for various automation and control systems, it ensures secure connections with easy insertion and withdrawal forces. Compatible with 28 AWG stranded tinned copper wires, it meets RoHS compliance standards.
SAMTEC HCSD20D020001TNGR PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Flammability Rating: UL 94V-0
- Temperature Range: -20°C to +105°C
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Contact Material: Phosphor Bronze
- Plating: 10 µin (0.25 µm) Gold on No. of Positions x 100, 150 µin (3.81 µm) Nickel
- Contact Resistance: 10 mΩ max
- Wire Size Range: 28 AWG stranded, 7/36
- Lead Size Range: 0.024" (0.61 mm) to 0.026" (0.66 mm)
- Insertion Force: 6 oz (1.67 N) average
- Withdrawal Force: 3 oz (0.83 N) average
- RoHS Compliant: Yes
- Dimensions: Length varies with model, typically 2 inches min
- Configuration: Male plug with socket on other end
- Certifications: UL Listed, RoHS compliant
Buy the Samlec HCSD20D020001TNGR – Reliable PCB Connectors for Industrial Applications
Order the Samlec HCSD20D020001TNGR now to ensure secure, reliable, and high-performance PCB connections suitable for industrial automation and control systems. Featuring robust phosphor bronze contacts with gold and nickel plating, rated for -20°C to +105°C, and capable of withstanding 1000 VRMS at 60 Hz, this connector guarantees excellent electrical insulation and durability. Its RoHS compliance and compatibility with 28 AWG stranded tinned copper wires make it ideal for leading industrial applications. Purchase online today for quick delivery and excellent technical support.
Buy Samlec HCSD20D020001TNGR now and experience unmatched reliability and performance in your industrial PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC HCSD20D020001TNGR?
You can click on the BUY or RFQ button to purchase HCSD20D020001TNGR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HCSD20D020001TNGR?
You can download the HCSD20D020001TNGR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HCSD20D020001TNGR?
SAMTEC
