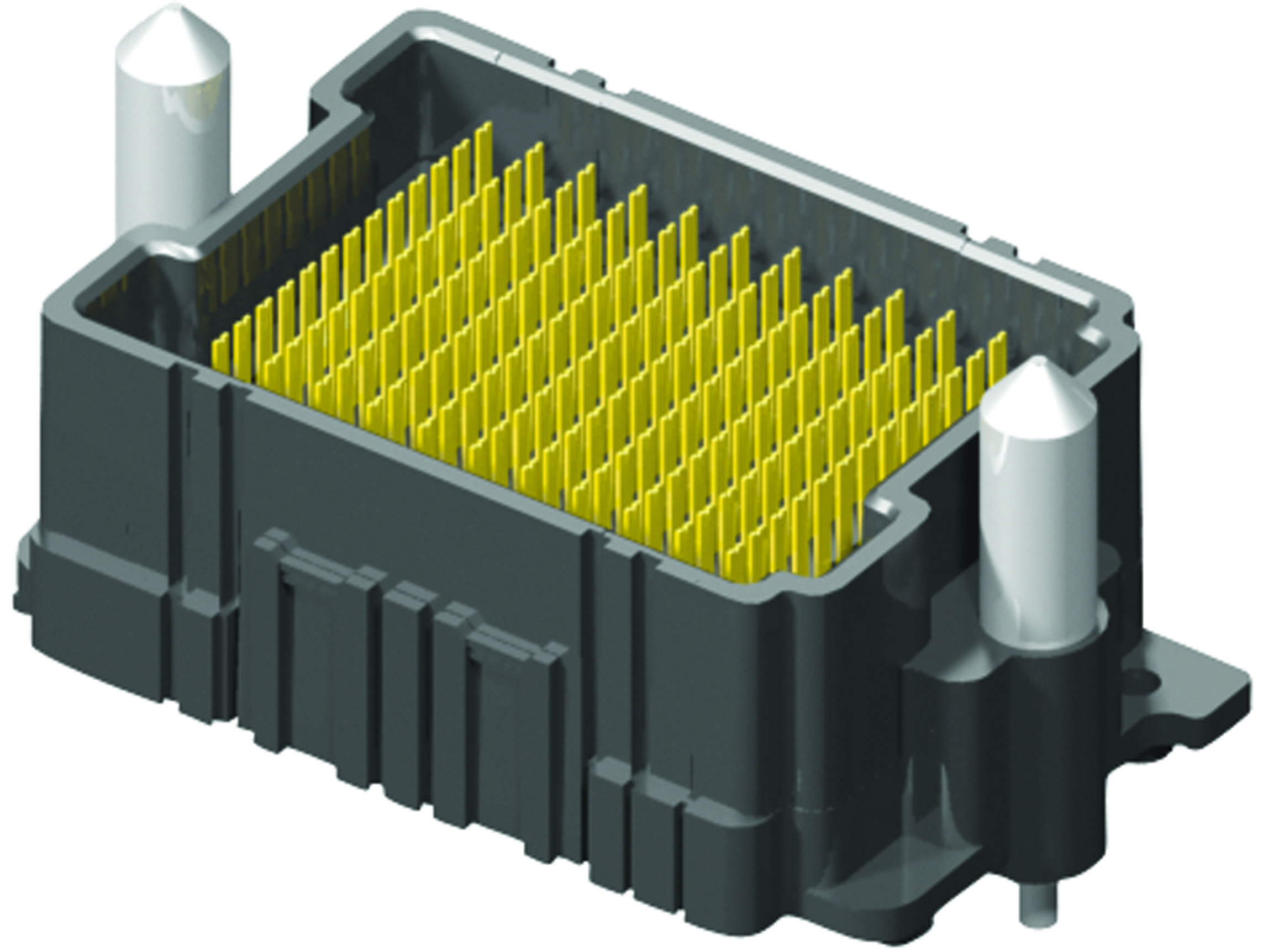

SAMTEC HDAM11120S132 High-Speed PCB Connector
The HDAM-11-12.0-S-13-2 is a high-performance connector series designed for reliable PCB connections in industrial applications. Featuring copper alloy construction with gold or tin plating over nickel, it offers excellent electrical conductivity. Its robust insulator material supports high current ratings up to 3.4 A per pin and operating temperatures from -55°C to +105°C. Suitable for high-speed data transmission at 9 GHz/18 Gbps, it ensures minimal insertion loss and durability for 100 mating cycles. Ideal for complex electronic and industrial interconnect solutions requiring RoHS compliance and lead-free solderability.
SAMTEC HDAM11120S132 High-Speed PCB Connector Specifications:
- Contact Material: Copper Alloy with Gold or Sn Plating over Nickel
- Insulator Material: High-quality dielectric
- Number of Pins: 11 x 13 array with various options
- Lead Plating: Gold or Tin over 50 µm Ni
- Current Rating: 3.4 A per pin
- Operating Temperature Range: -55°C to +105°C
- Working Voltage: 200 VAC
- Number of Mating Cycles: 100
- Impedance: Characterized for high-speed signals up to 9 GHz/18 Gbps
- RoHS Compliant: Yes, Lead-Free
- Dimensions: Standard sizes compatible with various PCB layouts
- Guide Posts: Integrated for precise mating
- Certifications: RoHS compliant
- Application: Industrial electronics, high-speed data systems, PCB interconnects
Buy the Samlec HDAM11120S132 – Reliable High-Speed Connector for Industrial Applications
Secure your electronic projects with the HDAM-11-12.0-S-13-2 connector. Featuring gold and tin plating with high current capacity, it ensures durability and reliable data transmission in industrial and high-speed applications. Its RoHS compliance and lead-free solderability make it a safe choice. Designed for multiple mating cycles and operating efficiently from -55°C to +105°C, this connector provides excellent electrical performance, minimal insertion loss, and easy PCB integration—perfect for complex, demanding electronic systems.
Buy Samlec HDAM11120S132 now and experience unmatched reliability and performance in high-frequency and industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC HDAM11120S132?
You can click on the BUY or RFQ button to purchase HDAM11120S132 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HDAM11120S132?
You can download the HDAM11120S132 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HDAM11120S132?
SAMTEC
