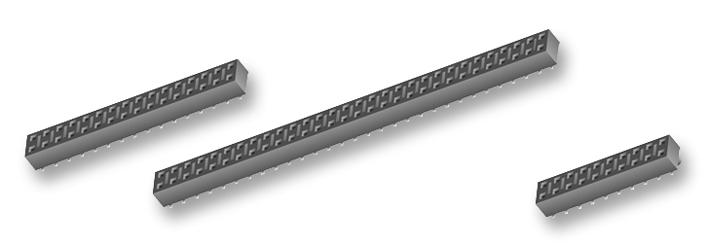

SAMTEC HLE10202LDVPE Board-to-Board Connector
The HLE series from Samtec features high-reliability, low-profile board-to-board connectors made from black liquid crystal polymer insulators and copper alloy contacts with gold or Sn over Ni plating. These connectors support operating temperatures up to +125°C, with insertion depths from 0.070" to 0.135", suitable for vertical or pass-through applications. Designed for RoHS compliance and lead-free soldering, they offer a maximum current rating of 4.1 A per pin and provide easy SMT assembly with coplanarity and insertion force specifications ideal for dense electronic assemblies.
SAMTEC HLE10202LDVPE Board-to-Board Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Au or Sn over Ni, 50u" Nickel
- Current Rating: 4.1 A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 0.070" to 0.135" (1.78 mm to 3.43 mm)
- Pass-through and bottom entry configurations available
- RoHS compliant, lead-free solderable
- Coplanarity: Maximum 0.004" (0.10 mm)
- Withdrawal Force: Average 4.6 oz (0.44 N)
- Compatible with multiple mating connectors like TSW, MTSW, DW, EW, ZW, TLW, TSM, MTLW, HW
- Designed for SMT applications with minimal insertion force and high durability
Buy the Samtec Series HLE Board-to-Board Connectors: HLE10202LDVPE
Purchase the Samtec Series HLE10202LDVPE connectors online today to benefit from high-quality, RoHS compliant, lead-free board-to-board connections. These connectors feature black liquid crystal polymer insulation and BeCu contacts with gold or Sn over Ni plating for excellent durability and electrical performance. With a temperature range up to +125°C and insertions depths ranging from 0.070" to 0.135", they support dense electronic designs. Designed for SMT manufacturing, they offer minimal insertion force, high current ratings, and compatibility with various mating options, making them ideal for reliable, high-performance electronics.
Order your Samtec Series HLE10202LDVPE connectors today and ensure reliable, high-performance connections for your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC HLE10202LDVPE?
You can click on the BUY or RFQ button to purchase HLE10202LDVPE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HLE10202LDVPE?
You can download the HLE10202LDVPE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HLE10202LDVPE?
SAMTEC
