SAMTEC HLE11102LDVPE PCB Edge Connector
The HLE series offers high-reliability card edge connectors with liquid crystal polymer insulators and gold or Sn over nickel plating. Designed for PCB applications, these connectors support operating temperatures up to +125°C and provide ease of installation with low insertion and withdrawal forces. Suitable for various industry applications, they feature lead-free solderability, compatibility with SMT processes, and multiple contact and pin configurations. The connectors are RoHS compliant and available in different plating options, ensuring high performance in demanding environments and flexible PCB mounting configurations.
SAMTEC HLE11102LDVPE PCB Edge Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Au or Sn over Ni (50u" / 1.27um)
- Current Rating: 4.1A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 0.070" to 0.135" (1.78mm to 3.43mm)
- Insertion Force: 4.6 oz (0.44 N) avg.
- Withdrawal Force: 4.6 oz (0.44 N) (single contact)
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable, SMT compatible with coplanarity up to 0.006"
- Number of Pins and Configurations: Various options with minimum of 2 positions
- Additional features: pass-through, bottom entry, multiple contact sizes, compatible with standard PCB layouts

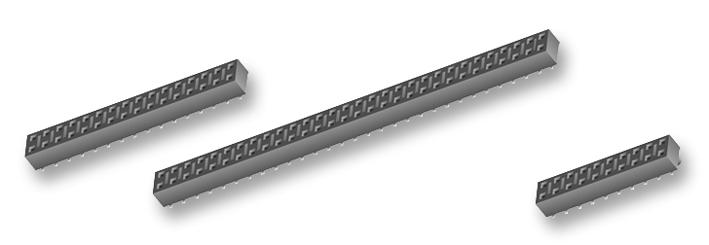

Buy the Samtec Series HLE PCB Connector: HLE-110-02-L-DV
Enhance your electronic assemblies with the Samtec Series HLE-110-02-L-DV PCB edge connector. Designed for durability and high performance, it features liquid crystal polymer insulation, gold or Sn over nickel plating, and supports operating temperatures up to +125°C. Its lead-free, RoHS-compliant design ensures environmentally friendly manufacturing. Suitable for a range of PCB configurations including pass-through and bottom entry, this connector offers reliable contact assurance, easy installation, and conformability with SMT processes. Order online today to ensure your project’s success.
Order your Samtec Series HLE-110-02-L-DV high-performance PCB connector today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy SAMTEC HLE11102LDVPE?
You can click on the BUY or RFQ button to purchase HLE11102LDVPE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HLE11102LDVPE?
You can download the HLE11102LDVPE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HLE11102LDVPE?
SAMTEC
