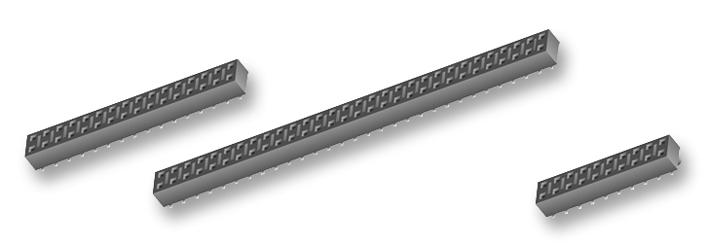

SAMTEC HLE11402LDVPE High-Density PCB Connector
The HLE series connectors from Samtec offer high-reliability, surface-mount, low-profile connections suitable for PCB applications. Featuring black liquid crystal polymer insulators and BeCu contacts with gold or Sn plating, these connectors support current ratings up to 4.1 amperes per pin and operate within a temperature range of -55°C to +125°C. Designed for easy integration, they provide pass-through or bottom entry options, with easy insertion and withdrawal forces. Certifications and RoHS compliance ensure adherence to industry standards, making these connectors ideal for compact, high-density electronic assemblies.
SAMTEC HLE11402LDVPE High-Density PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Au or Sn over 50u" Ni
- Current Rating: 4.1 A per pin
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 0.070" to 0.135" (1.78 mm to 3.43 mm)
- Insertion Force: not specified
- Withdrawal Force: 4.6 oz (0.44 N) average
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Lead Coplanarity: Max 0.004" (0.10 mm), Max 0.006" (0.15 mm)
- Compatible with TSW, MTSW, DW, EW, ZW, TLW, TSM, MTLW, HW series
- Available in multiple pin counts, with standard and non-standard lengths
- Support for through-hole, surface-mount, bottom entry, and pass-through configurations
- Certifications: Various recognized standards (see www.samtec.com/quality)
Buy the Samtec Series HLE High-Density Connectors: HLE-11402LDVPE
Order the Samtec HLE series high-density PCB connectors online today to ensure your electronic assemblies are reliable, RoHS compliant, and easy to install. These connectors feature black Liquid Crystal Polymer insulators and BeCu contacts with optional gold or Sn plating, supporting up to 4.1 amperes per pin. Designed for PCB pass-through, bottom entry, and surface-mount configurations, they are ideal for compact, high-performance electronic designs. Purchase online and benefit from fast shipping, competitive pricing, and expert support to enhance your manufacturing process.
Get Samtec HLE-11402LDVPE connectors today—designed for high-density, reliable PCB connections with RoHS compliance and easy assembly.
Frequently Asked Questions
Where can I buy SAMTEC HLE11402LDVPE?
You can click on the BUY or RFQ button to purchase HLE11402LDVPE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HLE11402LDVPE?
You can download the HLE11402LDVPE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HLE11402LDVPE?
SAMTEC
