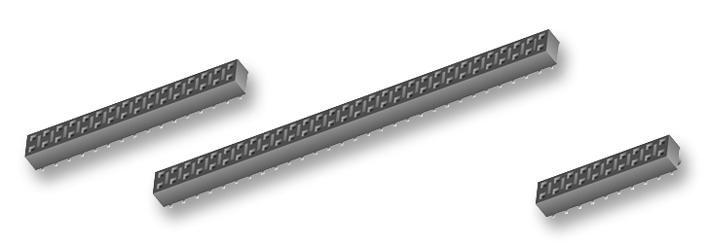

SAMTEC HLE11502LDVPE High-Performance PCB Connector
The HLE series are compact, high-performance connectors featuring black liquid crystal polymer insulators and BeCu contacts, plated with gold or Sn over nickel. Designed for PCB connections, they support up to 4.1 A per pin and are RoHS compliant. These connectors are suitable for through-hole and bottom entry applications, with operating temperatures up to +125°C. They provide reliable insertion and withdrawal forces, supporting various pin counts and PCB layouts, ideal for space-constrained electronic assemblies requiring durable, high-quality interconnections.
SAMTEC HLE11502LDVPE High-Performance PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Au or Sn over Ni, 50u" (1.27 um) Ni
- Current Rating: 4.1 A per pin
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 0.070" to 0.135" (1.78 mm to 3.43 mm)
- Insertion Force: Not specified
- Withdrawal Force: 4.6 oz (0.44 N) avg.
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Coplanarity: 0.004" (0.10 mm) to 0.006" (0.15 mm)
- RoHS Compliance: Yes
- Number of Pins: Varies, up to 51 positions
- Application: PCB mounting, through-hole, bottom entry
- Certifications: See manufacturer for complete scope
Buy the Buy Samlec HLE Series Part Number HLE11502LDVPE Online
Purchase the Samlec HLE series connector online today for reliable, high-quality PCB connections using advanced liquid crystal polymer insulators and durable BeCu contacts, supporting high current and temperature variations for demanding electronic applications.
Get Samlec HLE series connectors today—built for precision and long-lasting durability in high-reliability electronic systems.
Frequently Asked Questions
Where can I buy SAMTEC HLE11502LDVPE?
You can click on the BUY or RFQ button to purchase HLE11502LDVPE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HLE11502LDVPE?
You can download the HLE11502LDVPE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HLE11502LDVPE?
SAMTEC
