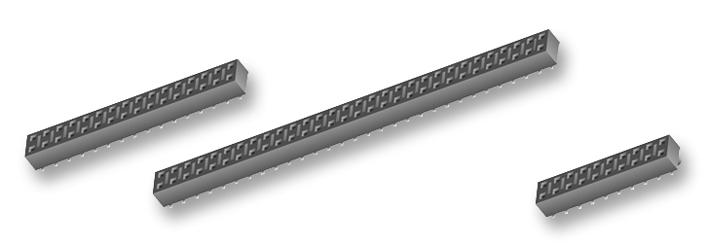

SAMTEC HLE12502LDVPE Socket Connector
The HLE series is a cost-effective, reliable socket designed for PCB applications with liquid crystal polymer insulators and gold or tin plating. Featuring a high current rating and RoHS compliance, it supports through-hole and pass-through configurations with depth adjustments from 0.070 to 0.135 inches. Suitable for industrial and automation uses, it offers a maximum operating temperature of +125°C, with easy soldering and low insertion and withdrawal forces. The socket’s robust construction ensures durability and secure connections for various electronic assemblies.
SAMTEC HLE12502LDVPE Socket Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: BeCu (Beryllium Copper)
- Plating: Gold or Tin over Tin, with 50μ
- 27
- 89
- 1.27 μm Ni
- Current Rating: Supports high currents (specific value not provided)
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 0.070" to 0.135" (1.78 mm to 3.43 mm), adjustable for pass-through or through-hole
- Number of Positions: 100 positions at 2.54 mm pitch
- RoHS Compliant: Yes
- Withdrawal Force: Approx. 4.6 oz (0.44 N)
- Processing: Free solderable, compatible with automated assembly
- Contact Plating Thickness: 50μ
- 27
- 89
- 1.27 μm
- Design: Supports multiple options with non-standard lengths and styles, subject to change
Buy the Buy Samtec HLE Series Socket Part Number HLE12502LDVPE Online
Experience reliable and cost-effective PCB connections with the Samtec Socket Connector from the HLE series. Designed with liquid crystal polymer insulators and robust BeCu contacts, it supports high currents up to your needs and can operate at temperatures up to +125°C. Easy to solder and suitable for automated assembly, this socket ensures secure, durable connections for industrial, automation, and electronic manufacturing applications. Purchase online now to benefit from quality, versatility, and quick delivery with Samtec's trusted electronics solutions.
Get Samtec HLE12502LDVPE today—built for precision and long-lasting durability in high-current PCB applications.
Frequently Asked Questions
Where can I buy SAMTEC HLE12502LDVPE?
You can click on the BUY or RFQ button to purchase HLE12502LDVPE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HLE12502LDVPE?
You can download the HLE12502LDVPE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HLE12502LDVPE?
SAMTEC
