SAMTEC HLE12602LDVPE Card Edge Connector
The HLE series from Samtec features high-quality, RoHS compliant card edge connectors with liquid crystal polymer insulators and gold or tin over nickel plating. Designed for reliable PCB connections, these connectors offer a range of pin counts, insertion depths, and pass-through options suitable for various industrial and electronic applications. They support soldering, bottom entry, and pass-through configurations, with precise coplanarity and insertion/extraction forces. Compatible with multiple mating components, the HLE series provides the durability and flexibility necessary for demanding electronic systems.
SAMTEC HLE12602LDVPE Card Edge Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Au or Snover with 50u" Ni
- Current Rating: 4.1A per pin
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 0.070" to 0.135"
- Insertion Force: Data available upon request
- Withdrawal Force: Average 4.6 oz (0.44 N)
- RoHS Compliant: Yes
- Processing: Lead-Free, Solderable
- Lead Coplanarity: Max 0.004" (0.10 mm), Max 0.006" (0.15 mm)
- Number of Pins: Varies with configuration, 2 to 50 positions
- Compatibility: Mates with TSW, MTSW, DW, EW, ZW, TLW, TSM, MTLW, HW
- Pass-Through, Bottom Entry, and PCB Mounting options available

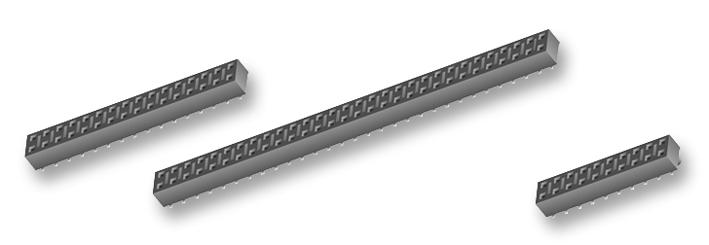

Buy the Samtec HLE Series – Reliable Connector for Industrial Applications
Enhance your electronic projects with the Samtec HLE series card edge connectors. Designed for durability and versatility, these connectors feature liquid crystal polymer insulation, gold or tin over nickel plating, and a broad range of pin counts. They're suitable for pass-through, bottom entry, and PCB mounting, ensuring secure electrical connections. Easy to solder, RoHS compliant, and capable of handling temperatures up to 125°C, the HLE series offers reliability for industrial, automation, and electronic manufacturing needs. Buy online now to streamline your assembly process and ensure quality connections.
Order your Samtec HLE series connectors today and improve your electronic assemblies with dependable, RoHS compliant PCB connection solutions.
Frequently Asked Questions
Where can I buy SAMTEC HLE12602LDVPE?
You can click on the BUY or RFQ button to purchase HLE12602LDVPE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HLE12602LDVPE?
You can download the HLE12602LDVPE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HLE12602LDVPE?
SAMTEC
