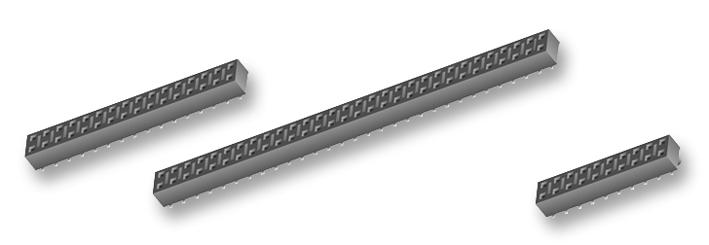

SAMTEC HLE12702LDV Socket Connector
This reliable and cost-effective socket features lead-free, solderable contacts using Tiger Beam™ technology. Designed for vertical through-hole mounting, it supports a current rating of 4.1A at 400VAC, with durable contact material and plating options. Operating efficiently within -55°C to 125°C, the socket offers easy insertion and withdrawal forces, suitable for industrial and automation applications. Its black insulator made of liquid crystal polymer enhances thermal stability. Ideal for rugged environments, this component ensures long-lasting electrical connections and dependable performance.
SAMTEC HLE12702LDV Socket Connector Specifications:
- Insulator Material: Liquid Crystal Polymer, Black
- Contact Material: BeCu (Beryllium Copper), Min. 4 positions
- Plating: Gold or Tin over Sn
- Current Rating: 4.1A
- Voltage Rating: 400VAC
- Operating Temp Range: -55°C to 125°C
- Insertion Depth: 1.78 mm (.070") to 3.43 mm (135"), plus board thickness
- Insertion Force: 2.02 N (avg), Withdrawal Force: 4.6 oz (0.44 N) (avg)
- RoHS Compliant: Yes
- Number of Positions: 100 (2.54 mm spacing)
- Process: Solderable, free soldering compatible
- Lead Coplanarity: Max 0.004" (0.10 mm) for 2-20 positions, Max 0.006" (0.15 mm) for 21-50
- RoHS compliant, designed for vertical through-hole mounting, RoHS compliant
Buy the Samtec HLE12702LDV – Reliable Socket for Industrial Applications
Order the Samtec HLE12702LDV socket online today—a cost-effective, high-reliability component perfect for industrial automation and rugged equipment. Featuring lead-free, solderable Tiger Beam™ contacts, it ensures secure electrical connections and long-term durability. With a max current of 4.1A at 400VAC and operating in temperatures from -55°C to 125°C, this socket supports high-performance applications. Its vertical through-hole mounting design simplifies assembly, making it an ideal choice for manufacturing, automation, and control systems needing dependable, long-lasting contact reliability.
Get Samtec HLE12702LDV today—designed with lead-free solder contacts for optimum electrical connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC HLE12702LDV?
You can click on the BUY or RFQ button to purchase HLE12702LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HLE12702LDV?
You can download the HLE12702LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HLE12702LDV?
SAMTEC
