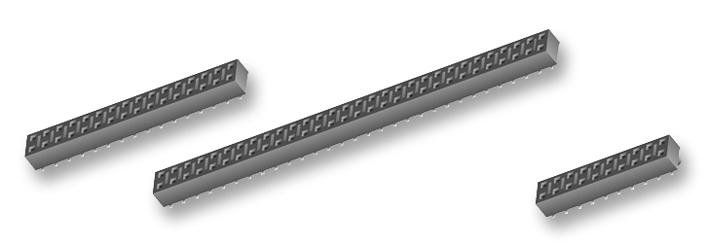

SAMTEC HLE13802LDV Industrial Connector
This industrial-grade connector features a black Liquid Crystal Polymer insulator and BeCu contacts with gold or Sn over plating, rated for 4.1A and 400VAC. Designed for vertical through-hole mounting, it offers lead-free solderability, high-temperature tolerance from -55°C to 125°C, and RoHS compliance. The component accommodates various PCB layouts with optimized insertion and withdrawal forces, supporting reliable connections in demanding environments. Its robust construction ensures consistent performance for industrial applications, including automation and control systems, with specific attention to electrical and thermal stability, RoHS compliance, and ease of assembly.
SAMTEC HLE13802LDV Industrial Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Au or Sn over Ni (50µ"/1.27μm)
- Current Rating: 4.1A per pin
- Voltage Rating: 400VAC
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 1.78 mm (0.070") to 3.43 mm (0.135")
- Withdrawal Force: 4.6 oz (0.44 N) average
- RoHS Compliant: Yes
- Lead-free solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (0.004") to 0.15 mm (0.006")
- Applicable for Through-hole mounting, vertical orientation
- Optional plating and styles available, consult manufacturer for specifics
Buy the Samlec Series HLE: Industrial Connector - HLE13802LDV
Purchase the Samlec series HLE13802LDV online today for top-quality, reliable electrical connections. This RoHS-compliant connector features lead-free solderability, ideal for demanding industrial environments. With a current rating of 4.1A and operating voltage of 400VAC, it ensures stable performance across a temperature range from -55°C to 125°C. Designed for vertical through-hole mounting with optimized insertion and withdrawal forces, this connector offers durability, ease of assembly, and versatile PCB compatibility, making it the perfect choice for automation, control systems, and manufacturing equipment.
Buy Samlec HLE13802LDV now and experience unmatched reliability and high-performance electrical connections for industrial automation.
Frequently Asked Questions
Where can I buy SAMTEC HLE13802LDV?
You can click on the BUY or RFQ button to purchase HLE13802LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HLE13802LDV?
You can download the HLE13802LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HLE13802LDV?
SAMTEC
