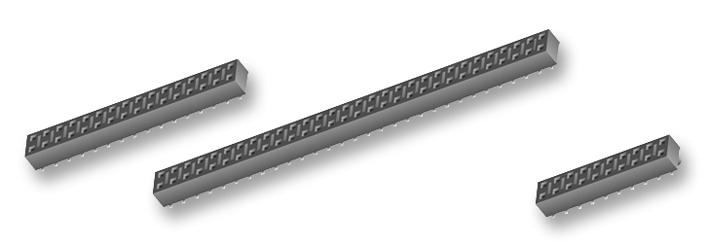

SAMTEC HLE14002LDV Electrical Connector
This industrial-grade electrical component features a black Liquid Crystal Polymer insulator and BeCu contact material with Au or Sn plating over Sn. It supports a current rating of 4.1A and operates at 400VAC, suitable for reliable power connections. Designed for vertical through-hole mounting, it encompasses 100 positions with easy solderability and RoHS compliance. The component withstands temperatures from -55°C to 125°C, with features like low insertion force, high contact integrity, and precise pin coplanarity, making it ideal for demanding automation and control systems.
SAMTEC HLE14002LDV Electrical Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu (Beryllium Copper)
- Plating: Au or Sn over Sn, 50p" (1.27 μm) Ni
- Current Rating: 4.1A
- Voltage Rating: 400VAC
- Operating Temp Range: -55°C to 125°C
- Number of Positions: 100
- Insertion Depth: 1.78 mm (0.070") to 3.43 mm (0.135"), pass-through, or 2.59 mm (0.102") min
- RoHS Compliant: Yes
- Soldering: Lead-free, free solderable
- Pin Coplanarity: 0.10 mm (0.004") max, 0.15 mm (0.006") max for 21-50 positions
- Process: 188 bead-free soldering
- Mounting Orientation: Vertical through-hole
Buy the Buy Samtec HLE14002LDV Part Number HLE14002LDV Online
Purchase the Samtec HLE14002LDV online today—engineered for industrial applications requiring high current capacity, reliable solderability, and temperature resilience. This connector features 100 positions, RoHS compliance, and a RoHS-compliant BeCu contact system with gold or tin plating. It supports a voltage of 400VAC and a current of 4.1A, with a temperature range from -55°C to 125°C. Ideal for automation, power distribution, or control systems, this through-hole connector guarantees durability, precise pin spacing, and easy installation for demanding engineering projects.
Get Samtec HLE14002LDV today—designed for industrial control robustness and high-temperature performance.
Frequently Asked Questions
Where can I buy SAMTEC HLE14002LDV?
You can click on the BUY or RFQ button to purchase HLE14002LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HLE14002LDV?
You can download the HLE14002LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HLE14002LDV?
SAMTEC
