SAMTEC HLE14102LDVPE High-Density Socket
The HLE series is a cost-effective, reliable socket designed for versatile PCB mounting applications, featuring a liquid crystal polymer insulator and gold or tin plating for durability. It supports a wide range of positions (up to 100) with through-hole or pass-through options, and has a robust construction rated for temperatures up to +125°C. Suitable for high-density electronics, it offers easy solderability, precise coplanarity, and RoHS compliance, making it ideal for demanding electronic assembly where reliability and performance are crucial.
SAMTEC HLE14102LDVPE High-Density Socket Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Au or Sn over Sn with Ni barrier
- Current Rating: 4A per pin
- Operating Temp Range: -55°C to +125°C (requires BE bottom entry)
- Insertion Depth: 0.070" to 0.135" (1.78 mm to 3.43 mm)
- Number of Positions: up to 100
- RoHS Compliant: Yes
- Processing: Free solderable, easy to assemble
- Lead Coplanarity: 0.004" (0.10 mm) max (8 positions min.)
- Withdrawal Force: 4.6 oz (0.44 N) avg.
- Design: Through-hole, pass-through options, RoHS compliant

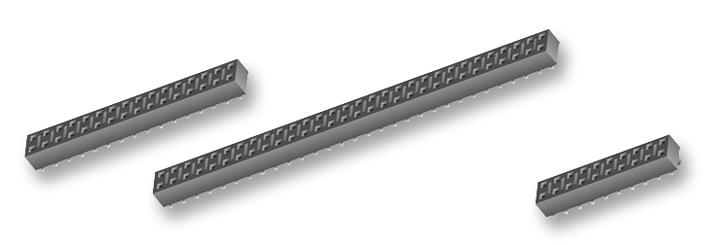

Buy the Buy Samtec HLE Series Part Number HLE14102LDVPE Online
Purchase the Samtec HLE series socket online for dependable PCB mounting solutions supporting up to 100 positions, with through-hole and pass-through options. This RoHS-compliant connector features a liquid crystal polymer insulator, gold or tin plating for durability, and a temperature range of -55°C to +125°C. Designed for easy soldering, precise coplanarity, and high-performance applications, it ensures robust electrical connections, making it ideal for demanding electronics and industrial equipment assembly. Buy now to enhance your project’s reliability and efficiency.
Order your Samtec HLE14102LDVPE series socket today and enjoy high-density, reliable PCB connections with excellent solderability and temperature tolerance.
Frequently Asked Questions
Where can I buy SAMTEC HLE14102LDVPE?
You can click on the BUY or RFQ button to purchase HLE14102LDVPE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HLE14102LDVPE?
You can download the HLE14102LDVPE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HLE14102LDVPE?
SAMTEC
