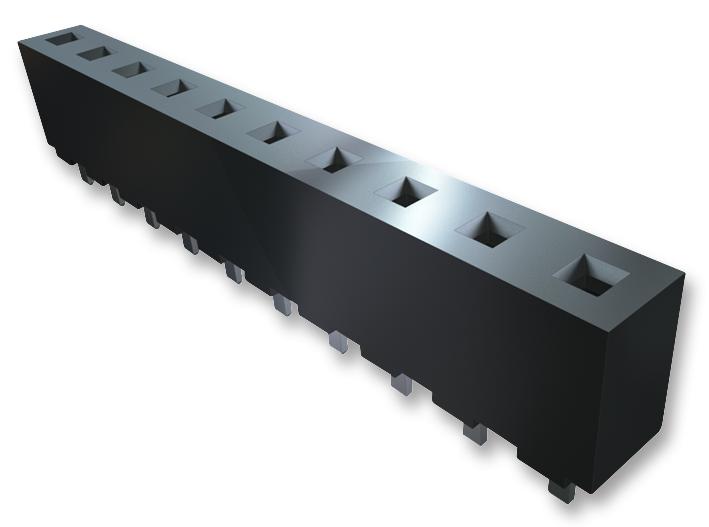

SAMTEC HPF0201TS Power Socket Connector
The SAMTEC HPF series power socket connectors are designed for reliable power transmission in a variety of applications. These connectors feature black LCP insulators and BeCu contacts with a Sn over Ni plating, ensuring excellent conductivity and corrosion resistance. They are suitable for surface mount applications and mate with SAMTEC HPM and HPW through-hole connectors. The HPF-02-01-T-S model offers a .200" pitch and is RoHS compliant, making it a versatile choice for modern electronic designs. Note that some lengths, styles, and options are non-standard and non-returnable.
SAMTEC HPF0201TS Power Socket Connector Specifications:
- Mates with: HPM, HPW
- Insulator Material: Black LCP
- Contact Material: BeCu
- Plating: Sn over 50 µ" (1.27 µm) Ni
- Operating Temp Range: -55 °C to +105 °C
- Voltage Rating: 850 VAC/1200 VDC
- Insertion Depth: 3.68 mm to 8.26 mm (.145" to .325")
- Wiping Distance: (0.38 mm) .015"
- Standard Creepage: (2.82 mm) .111"
- Standard Clearance: (2.5 mm) .098"
- Lead–Free Solderable: Yes
- SMT Lead Coplanarity: (0.15 mm) .006" max
- RoHS Compliant: Yes
- Pitch: (5.08 mm) .200"
- Number of Positions: Up to 20
- Locking Clip Option: Available
- Manual Placement: Required (Style –02 only)
- Polyimide Film Diameter: (6.50 mm) .256"
- Tape and Reel Packaging: Available (Style –02 only)
Buy the HPF-02-01-T-S SAMTEC Power Socket Connector | myMectronic
Securely purchase the SAMTEC HPF-02-01-T-S power socket connector online for your project's needs.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC HPF0201TS?
You can click on the BUY or RFQ button to purchase HPF0201TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HPF0201TS?
You can download the HPF0201TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HPF0201TS?
SAMTEC
