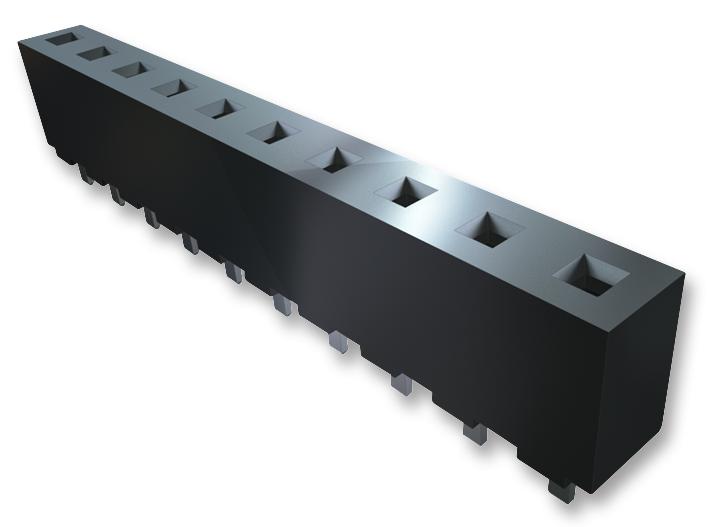

SAMTEC HPF0301TS High Power Connector
The product is a high-quality header and socket connector series designed for through-hole and surface-mount applications. Made with glass-filled polyester, liquid crystal polymer, and black LCP materials, these connectors feature lead-free solderability, high operating temperature range from -55°C to 108°C, and various plating options including tin over nickel. Available in multiple styles, sizes, and configurations, they support high-density placement for electronic assemblies with specifications covering dimensions, contact material, and plated finishes. These connectors are ideal for industrial, automation, and manufacturing equipment requiring reliable electrical connections in demanding environments.
SAMTEC HPF0301TS High Power Connector Specifications:
- Material: Polyester, Liquid Crystal Polymer, Black LCP
- Number of Positions: 2 to 20
- Pin/Lead Style: Through-hole, surface mount, right-angle
- Plating: Sn over 50 y (1.27 um) Ni
- Contact Material: Copper Alloy
- Operating Temperature Range: -55°C to 108°C
- Voltage Rating: Specified per application standards
- Insulation Material: Polyester, Liquid Crystal Polymer
- Contact Resistance: Not specified
- Dimensions: Variety of sizes with minimum post height of 275 mils
- Processing: Lead-Free, solderable, compatible with machine placement and tape & reel packaging
- Wiping Distance: 0.015 inches (0.38 mm), 0.005 inches (0.13 mm)
- Mounting Style: Through-hole, SMT, and right-angle options
- Packaging: Tape & Reel, Full Reel, Manual
Buy the Samtec Series HPF High Power Connector: HPF0301TS
Order the High Power Connector now to ensure secure and reliable electrical connections in your industrial and manufacturing projects. Designed with lead-free solderability, high-temperature tolerance, and multiple mounting styles, this connector meets stringent quality standards. Its durable materials, including black LCP and liquid crystal polymer, provide excellent environmental resistance. Suitable for through-hole and surface-mount applications, it supports high-density configurations and tape & reel packaging for efficient assembly. Enhance your electronic system’s performance with a proven, high-quality connector available online today.
Buy Samtec HPF0301TS high power connectors now and experience unmatched reliability and performance in demanding industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC HPF0301TS?
You can click on the BUY or RFQ button to purchase HPF0301TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HPF0301TS?
You can download the HPF0301TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HPF0301TS?
SAMTEC
