SAMTEC HPF2001TS High Power Connector
The HPF2001TS is a high-power through-hole header designed with matte tin plating for reliable electrical connections in industrial applications. It features a withstand temperature range from -55°C to +108°C, a voltage rating suitable for high-voltage environments, and a high number of positions for flexible circuitry. Constructed with glass-filled polyetherimide (PEI) and liquid crystal polymer (LCP), it offers excellent mechanical strength and thermal stability. The product is compatible with wave and reflow soldering, ensuring versatile assembly options. Its robust design facilitates secure connections in demanding electronic systems.
SAMTEC HPF2001TS High Power Connector Specifications:
- Material: Glass-filled polyetherimide (PEI), Liquid Crystal Polymer (LCP)
- Plating: Matte Tin
- Voltage Rating: Suitable for high-voltage applications
- Operating Temp Range: -55°C to +108°C
- No. of Positions: 2 to 20
- Post Height: 0.275 inches (7.0 mm)
- Wiping Distance: 0.015 inches (0.38 mm)
- Pin Pitch: 2.54 mm (0.100 inches)
- Process Compatibility: Wave solder, reflow soldering
- Packaging: Tape & Reel, Full Reel available
- Number of Rows: Single row (minimum 2 pins/row)
- Lead-Free Solderable: Yes
- Mounting Style: Through-hole
- Insulation Material: Polyester, Liquid Crystal Polymer
- Certifications: RoHS compliant
- Connector Type: Stackers & sockets for electronic assemblies
- Application: Industrial equipment, control systems, automation modules

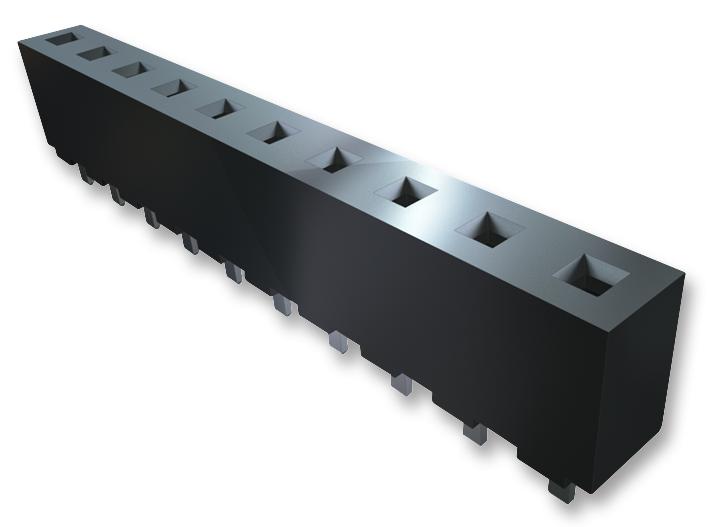

Buy the Samtec Series HPF High Power Through-hole Connector: HPF2001TS
Discover the high reliability and robust build of the Samtec HPF2001TS high power through-hole connector. Designed with matte tin plating and constructed from durable materials like glass-filled PEI and LCP, it can handle high voltages and temperatures from -55°C to +108°C. With options for tape and reel packaging or full reels, it offers flexible assembly suited for industrial applications. Its high number of positions and compatibility with wave and reflow soldering make it ideal for demanding control systems and automation equipment. Purchase online today for trusted performance and easy integration.
Order your Samtec Series HPF2001TS high power through-hole connector today and ensure your electronic systems have reliable, durable connections for demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC HPF2001TS?
You can click on the BUY or RFQ button to purchase HPF2001TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HPF2001TS?
You can download the HPF2001TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HPF2001TS?
SAMTEC
