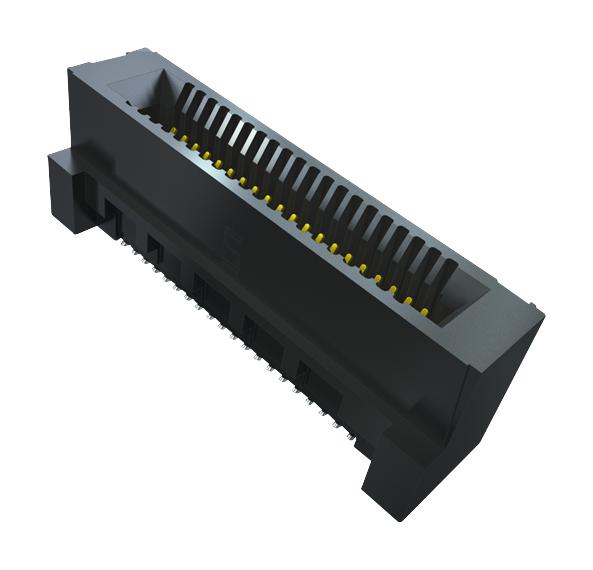

SAMTEC HSEC811001SDVA High-Density PCB Connector
The HSEC8-110-L2 connector is a high-quality, PCB-mounted electrical component designed for reliable signal transmission in industrial applications. Manufactured with black liquid crystal polymer insulators and BeCu contact pins plated with Au or Sn over 50 microns Ni, it offers a current rating of 2.8 A per pin. Operating within a temperature range of -55°C to +125°C, this RoHS-compliant, lead-free connector features SMT lead coplanarity of 0.10 mm, making it suitable for precise, durable, and environmentally friendly electronic assembly. Compatible with cards measuring 1.60 mm (.062”) and 2.36 mm (.093”), it ensures robust performance in demanding environments.
SAMTEC HSEC811001SDVA High-Density PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Au or Sn over 50 μ" Ni
- Current Rating: 2.8 A per pin
- Operating Temperature: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (.004") max
- Number of Positions: 8
- Pin Pitch: 0.80 mm (.0315")
- Mates with: 1.60 mm (.062") and 2.36 mm (.093") cards
- Certifications: RoHS compliant
- Design Compatibility: For use with ECDP series, customizable for misalignment, non-standard features available
- Features: Extended life options, various plating on tails, high density configuration
Buy the Samtec HSEC8-110-L2 – Reliable Connector for Industrial Applications
Discover the reliable high-density PCB connector designed for demanding industrial environments. The Samtec HSEC8-110-L2 features durable BeCu contacts plated with gold or tin over nickel, supporting currents up to 2.8 A per pin. Operating temperature range from -55°C to +125°C ensures stable performance in extreme conditions. RoHS compliant and lead-free, it offers SMT lead coplanarity of 0.10 mm for precise placement. Perfect for high-density electronic assemblies requiring robust, long-lasting connectivity solutions, available now for quick online purchase.
Get Samtec HSEC8-110-L2 today—built for precision, durability, and high-density PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC HSEC811001SDVA?
You can click on the BUY or RFQ button to purchase HSEC811001SDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HSEC811001SDVA?
You can download the HSEC811001SDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HSEC811001SDVA?
SAMTEC
