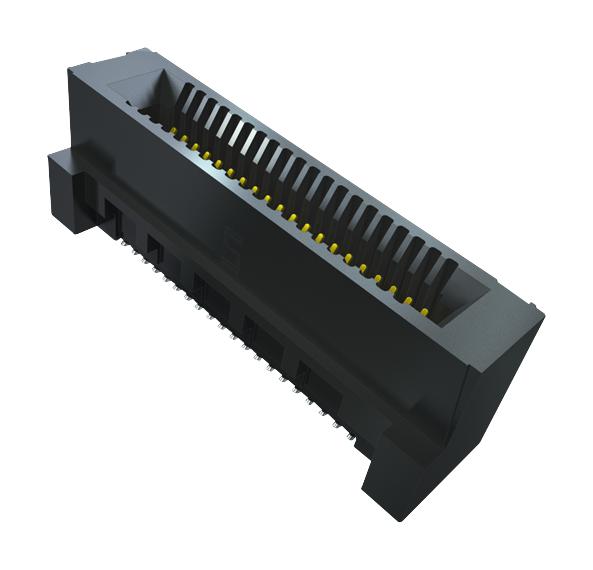

SAMTEC HSEC813001LDVA High-Density Signal Connector
The HSEC8-130-01-L-DV-A is a high-performance connector designed for reliable signal and ground connections in industrial and electronic applications. Crafted with black liquid crystal polymer insulation and gold or tin plating over nickel, it offers excellent conductivity and corrosion resistance. Operating within a temperature range of -55°C to +125°C, this RoHS-compliant connector is solderable and supports SMT lead coplanarity of 0.10 mm. Its robust design ensures high durability, making it ideal for demanding environments with frequent connection cycles.
SAMTEC HSEC813001LDVA High-Density Signal Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Plating: Au or Sn over 50 μ" Ni
- Operating Temp: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm
- Material: BeCu for cable mates
- No. of Positions: varies (e.g., 6, 12, 25, 49, etc.)
- Compatible with ECDP series connectors
- Plating options include Matte Tin or Gold on contacts and Tin on tails
- Designed for 50Ω applications with alternative signal/ground patterns
- Custom designs available for misalignment compensation
- Dimensions and lengths vary based on models, with typical pitch of 0.80 mm
Buy the Samtec HSEC8-130-01-L-DV-A – Reliable Signal and Ground Connector for Industrial Applications
Purchase the Samtec HSEC8-130-01-L-DV-A connector online today and experience its superior reliability and durability. Designed for high-performance signal and ground connections in demanding environments, this connector features durable liquid crystal polymer insulation and corrosion-resistant plating options. Its wide temperature range and RoHS compliance make it suitable for various industrial applications. Easy to solder and compatible with standard ECDP series, it ensures secure connections and long service life in your electronic systems. Order now for quick and secure shipping.
Get Samtec HSEC8-130-01-L-DV-A today—built for precision and long-lasting durability in electronic and industrial connection needs.
Frequently Asked Questions
Where can I buy SAMTEC HSEC813001LDVA?
You can click on the BUY or RFQ button to purchase HSEC813001LDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HSEC813001LDVA?
You can download the HSEC813001LDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HSEC813001LDVA?
SAMTEC
