SAMTEC HSEC816001LDVABL High-Density PCB Connector
The HSEC8 series connector is a high-performance, surface-mount device designed for PCB applications. Made with black liquid crystal polymer insulation and copper alloy contacts, it features gold or tin plating over nickel for corrosion resistance. With a current rating of 2.8 A per pin and operating temperatures from -55°C to +125°C, it is RoHS compliant and lead-free solderable. It supports 50-60 positions with optional keying and custom misalignment compensation, making it ideal for high-density, reliable electronic assemblies and modular systems requiring secure connections and durability.
SAMTEC HSEC816001LDVABL High-Density PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu (Beryllium Copper)
- Plating: Au or Sn over 50 u" Ni
- Current Rating: 2.8 A per pin
- Operating Temperature: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.004" maximum
- Number of Positions: 6 to 100+ depending on model
- Connector Style: Vertical PCB mount
- Compatible with ECDP series cards
- Material: Liquid Crystal Polymer insulator, Copper alloy contacts
- Dimensions: pitch 0.80 mm (0.0315")
- RoHS and REACH compliant, designed for high-density electronic connections
- Custom designs available for misalignment compensation

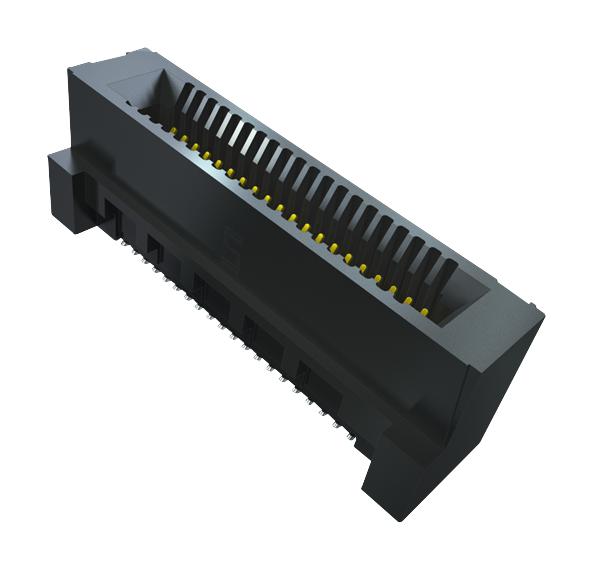

Buy the Samtec Series HSEC8 High-Density Connector: HSEC816001LDVABL
Secure your electronic assemblies with the high-density PCB connector from Samtec. Featuring gold or tin plating over nickel, rated 2.8 A per pin, and operating from -55°C to +125°C, this RoHS-compliant, lead-free connector offers excellent durability and electrical performance. Designed for PCB and card-to-board connections, it supports multiple positions and is customizable for misalignment compensation. Easy to solder and mount via surface-mount technology, it is perfect for modular systems, industrial equipment, and high-reliability electronics. Purchase online today for fast delivery and dependable quality.
Order your Samtec Series HSEC8 HSEC816001LDVABL today and ensure reliable, high-performance connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC HSEC816001LDVABL?
You can click on the BUY or RFQ button to purchase HSEC816001LDVABL from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HSEC816001LDVABL?
You can download the HSEC816001LDVABL datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HSEC816001LDVABL?
SAMTEC
