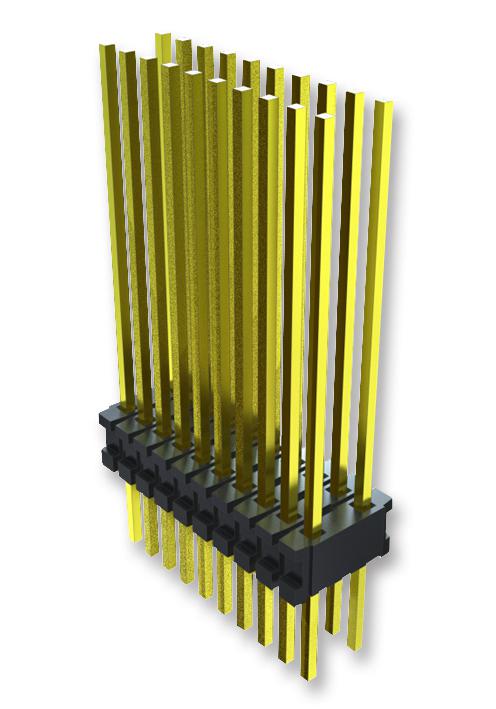

SAMTEC HTMS10501GD Micro Terminal Strip Header
The HTMS series from Samtec consists of high-temperature, unshrouded through-hole micro terminal strip headers. These connectors feature 0.018 inch (0.46 mm) square posts and are compatible with Samtec SMS, SLM, and RSM series connectors. They are available in single or dual row configurations with optional polarization, accommodating up to 100 pins. The pitch spacing is 1.27 mm, with straight orientation, and the contacts are gold-plated to withstand operating temperatures from -55°C to 125°C. The contact material is phosphor bronze, and the insulator is made of black liquid crystal polymer, compliant with UL E111594 standards. Suitable for industrial applications.
SAMTEC HTMS10501GD Micro Terminal Strip Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Current Rating: 5A per pin
- Operating Temp Range: -55°C to +125°C with Gold plating, -55°C to +105°C with Tin plating
- Contact Resistance: 10 mΩ
- Lead Size Acceptance: 0.46 mm (.018")
- Insertion Depth: 3.43 mm (.135") minimum
- Pitch: 1.27 mm (.050")
- Style: Unshrouded through-hole, with optional polarization
- RoHS Compliant: Yes
- Max Processing Temp: 450°F (232°C)
- Number of Pins: Up to 100 pins
- Compatible Series: SMS, SLM, RSM
- Certifications: UL E111594
Buy the Buy Samtec HTMS Series Part Number HTMS10501GD Online
Order the Samtec HTMS series high-temperature micro terminal strip headers online today. These unshrouded through-hole connectors feature gold-plated contacts, a 1.27 mm pitch, and operate from -55°C to 125°C. Perfect for industrial applications requiring reliable, high-temperature performance. With compatibility for SMS, SLM, and RSM series, they offer excellent current handling up to 5A per pin and are made with durable phosphor bronze contacts. Secure your supply of these high-quality headers and ensure your project's success.
Get Samtec HTMS series headers today—designed for high-temperature applications and reliable performance.
Frequently Asked Questions
Where can I buy SAMTEC HTMS10501GD?
You can click on the BUY or RFQ button to purchase HTMS10501GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTMS10501GD?
You can download the HTMS10501GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTMS10501GD?
SAMTEC
