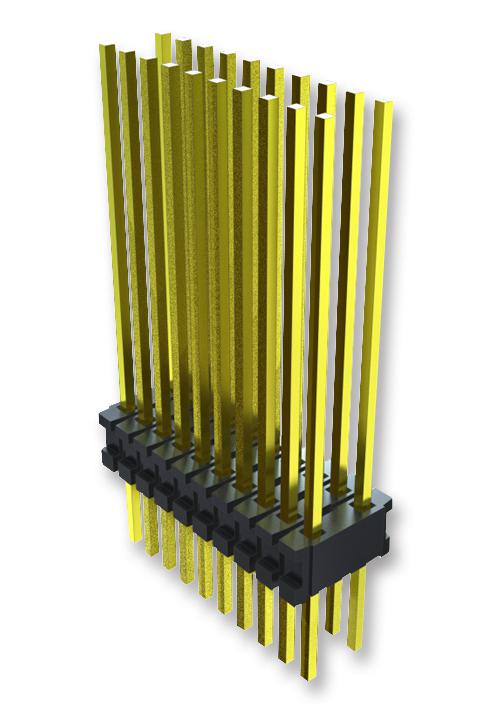

SAMTEC HTMS12601GS Micro Terminal Headers
The HTMS series from Samtec are high-temperature micro terminal strip headers designed for industrial applications. These unshrouded, through-hole headers feature 0.018 inch (0.46mm) square posts and are compatible with Samtec SMS, SLM, and RSM series connectors. Available in single or dual-row configurations with 1.27mm pitch spacing and straight orientation, contacts are gold-plated over nickel, operating from -55°C to 125°C. Made of phosphor bronze with black liquid crystal polymer insulators, they meet UL E111594 standards and support polarization for up to 100 pins.
SAMTEC HTMS12601GS Micro Terminal Headers Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Current Rating: 5A per pin
- Operating Temp Range: -55°C to +125°C with Gold plating, -55°C to +105°C with Tin plating
- Contact Resistance: 10 mΩ
- Lead Size: 0.46 mm (.018") square posts
- Insertion Depth: Minimum 3.43 mm (.135")
- Pitch: 1.27 mm (.050")
- Max Processing Temp: 450°F (232°C)
- RoHS Compliant: Yes
- Number of Pins: Up to 100, single/double row options
- Style: Through-hole, straight orientation
- Compatibility: Samtec SMS, SLM, RSM series connectors
Buy the Buy Samtec HTMS Micro Terminal Headers Part Number HTMS12601GS Online
Purchase Samtec HTMS series micro terminal headers online today to harness dependable, high-temperature connectivity solutions. These headers feature gold or tin over nickel plating and are made from durable phosphor bronze with black liquid crystal polymer insulators. Designed for industrial environments, they operate from -55°C to 125°C, supporting up to 100 pins with polarized options. Easy to install with 1.27mm pitch spacing and compatible with various Samtec connectors, these headers ensure robust performance for your electronic assemblies.
Order your Samtec Series HTMS micro terminal headers today and ensure reliable connectivity for your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC HTMS12601GS?
You can click on the BUY or RFQ button to purchase HTMS12601GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTMS12601GS?
You can download the HTMS12601GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTMS12601GS?
SAMTEC
