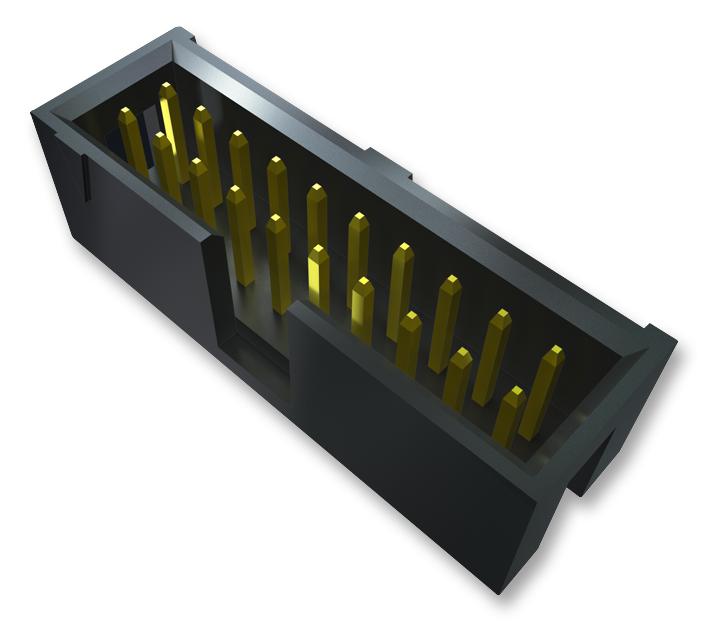

SAMTEC HTSS10502LD Shrouded IDC Header
The HTSS10502LD is a shrouded IDC header designed for reliable connection in industrial electronic applications. Crafted with black glass-filled polyester insulator material, it offers excellent insulation resistance of at least 5000 MΩ and withstands voltage up to 4000 VRMS. The terminal material is phosphor bronze with optional gold or tin plating over nickel, suitable for operating temperatures from -55°C to +125°C with gold and -55°C to +105°C with tin. This component complies with UL 94V-0 flammability standards and RoHS directives, ensuring safety and environmental compliance across various manufacturing needs.
SAMTEC HTSS10502LD Shrouded IDC Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Insulation Resistance: 5000 MΩ min
- Terminal Material: Phosphor Bronze
- Plating Options: Au or Sn over 50 μm Ni
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 4000 VRMS
- RoHS Compliance: Yes
- Lead-Free Solderable: Yes (HTSS)
- SMT Lead Coplanarity: 0.15 mm
- Height: 1.4 mm
- Body Diameter: 2.54 mm (0.100")
- No. of Pins Per Row: 03, 05, 07, 08, 10, 12
- Size Options: Standard and non-standard sizes available
- Pole Spacing: 2.54 mm (0.100") with additional options
- Contact Resistance: Not specified
- Mechanical stability reinforced with board spacers recommended
- Certifications: UL Listed, RoHS compliant
Buy the Samtec HTSS10502LD – Reliable Shrouded IDC Headers for Industrial Applications
Purchase the Samtec HTSS10502LD series shrouded IDC header online today to guarantee reliable data and power connections in your industrial and automation systems. This high-performance component features phosphor bronze terminals with gold or tin plating, ensuring excellent conductivity, corrosion resistance, and durability under high voltage and temperature conditions. Its UL 94V-0 flammability rating and RoHS compliance make it a safe, environmentally friendly choice. Easy to install with SMT lead coplanarity, this connector is ideal for demanding electronic applications requiring secure, stable, and high-quality connections.
Order your Samtec HTSS10502LD series shrouded IDC header today and ensure robust, high-quality connections for your industrial electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC HTSS10502LD?
You can click on the BUY or RFQ button to purchase HTSS10502LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS10502LD?
You can download the HTSS10502LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS10502LD?
SAMTEC
