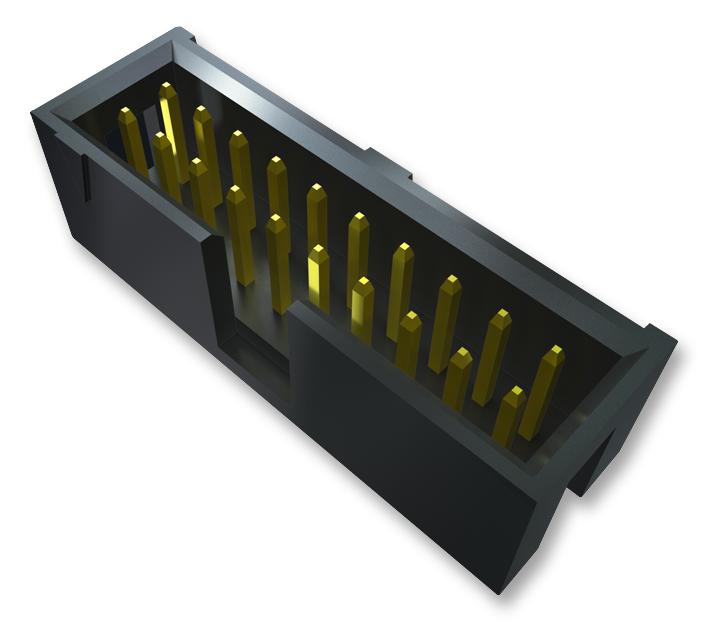

SAMTEC HTSS10701TDV IDC Connector
The HTSS series are shrouded IDC headers and stackers designed for reliable electrical connections in various electronic applications. Constructed with black glass-filled polyester insulators and phosphor bronze terminals, these connectors support RoHS compliance and withstand voltages up to 4000 VRMS. They feature gold or tin over nickel platings for durable contacts, operate within temperatures of -55°C to +125°C with gold plating, and -55°C to +105°C with tin. Suitable for SMT soldering, these high-quality connectors include optional alignment pins, locking leads, and polarized features, ensuring secure and stable connections in complex electronic assemblies.
SAMTEC HTSS10701TDV IDC Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50' Ni
- Insulation Resistance: 5000 MQ min
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 4000 VRMS
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable (HTSS)
- SMT Lead Coplanarity: 0.15 mm (.006")
- Optional features include alignment pins, locking leads, polarization, and various sizes for different pin configurations.
Buy the Buy Samtec HTSS Series Part Number HTSS10701TDV Online
Enhance your electronic assemblies by purchasing the high-quality Samtec IDC Connector online. Designed with durable materials and RoHS compliance, this connector ensures secure, reliable connections for PCB applications. Featuring customizable options like alignment pins, polarization, and locking leads, it fits various industry needs. Its high temperature and voltage ratings support demanding environments, making it ideal for professional electronics projects. Buy now to benefit from fast shipping, expert support, and the convenience of online ordering for your complex electronic system needs.
Buy Samtec HTSS10701TDV now and experience unmatched reliability and performance in your electronic connections with high-temperature and voltage capacity.
Frequently Asked Questions
Where can I buy SAMTEC HTSS10701TDV?
You can click on the BUY or RFQ button to purchase HTSS10701TDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS10701TDV?
You can download the HTSS10701TDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS10701TDV?
SAMTEC
