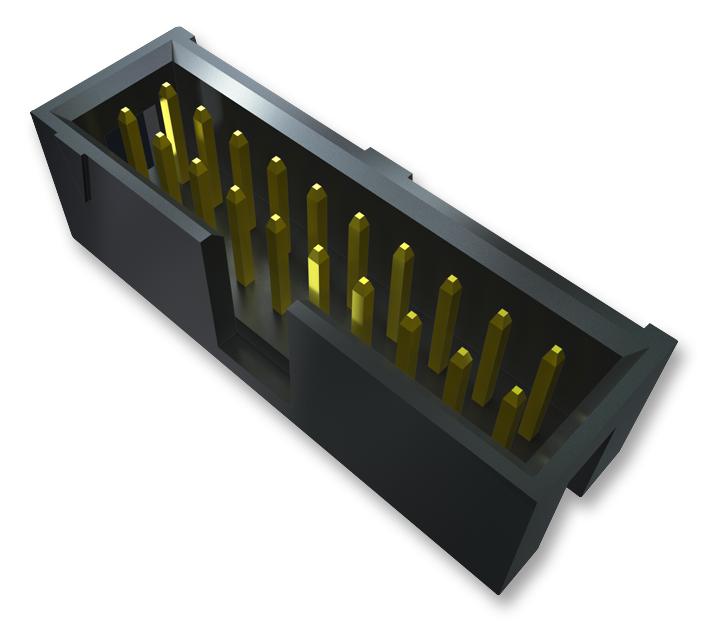

SAMTEC HTSS11001GD Shrouded IDC Header
The HTSS series are shrouded IDC headers designed for secure and reliable electrical connections in various applications. Constructed with black glass-filled polyester insulators and phosphor bronze terminals plated with gold or tin over nickel, these headers support operating temperatures from -55°C to +125°C with gold plating and up to +105°C with tin. They are UL 94V-0 flammability rated, withstand voltage up to 4000 VRMS, and are RoHS compliant. Ideal for PCB mounting, these headers ensure precise alignment and durable performance in demanding environments, suitable for automation, control systems, and electronic devices.
SAMTEC HTSS11001GD Shrouded IDC Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni (50 μm)
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 4000 VRMS
- Insulation Resistance: 5000 MQ min
- Lead-Free Solderable: Yes (HTSS)
- SMT Lead Coplanarity: 0.15 mm
- RoHS Compliant: Yes
- Contact Plating Options: Matte Tin, Gold
- Size: Multiple options from 3 to 12 positions, various lengths
- Application: PCB headers for industrial, automation, electronic systems
Buy the Buy Samtec HTSS11001GD Part Number HTSS11001GD Online
Purchase the Samtec HTSS series shrouded IDC headers online for reliable, high-quality electrical connections. These headers feature robust glass-filled polyester insulators and phosphor bronze terminals with gold or tin plating, supporting operating temperatures from -55°C to +125°C. With UL 94V-0 flammability rating, 4000 VRMS withstand voltage, and RoHS compliance, they are ideal for PCB mounting in automation and control systems. Designed for durability and precision, order now for fast delivery and excellent performance in demanding industrial environments.
Get Samtec HTSS11001GD today—built for precision and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC HTSS11001GD?
You can click on the BUY or RFQ button to purchase HTSS11001GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS11001GD?
You can download the HTSS11001GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS11001GD?
SAMTEC
