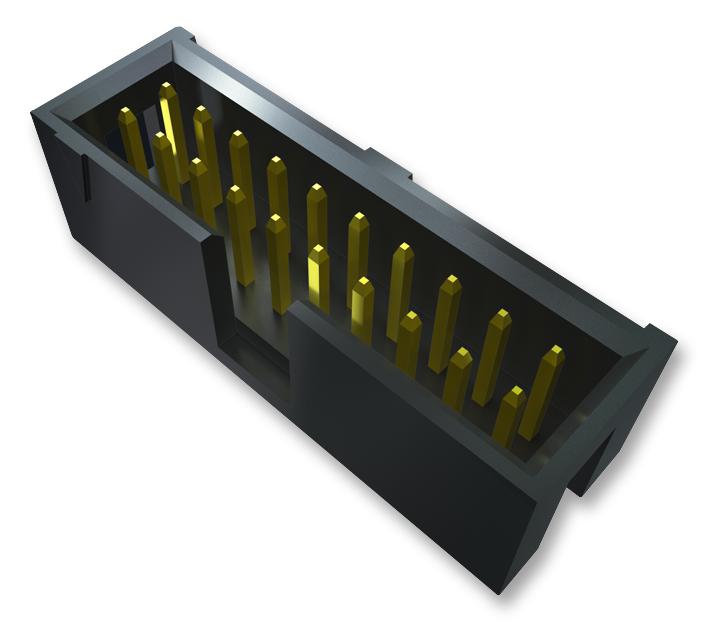

SAMTEC HTSS11002GD Shrouded Header Connector
The HTSS11002GD is a shrouded header connector with a 0.025-inch square post, designed for through-hole mounting and surface mount applications. It features gold flash on the post, matte tin on the tail, a black glass insulator, and a 2.54 mm pitch with double row configuration. The connector withstands operating temperatures from -55°C to +105°C, offers an insulation resistance of 5000 MO minimum, and is compatible with lead-free soldering processes. It provides reliable electrical connectivity, durable plating, and precise pitch alignment suited for high-density circuit applications.
SAMTEC HTSS11002GD Shrouded Header Connector Specifications:
- Post Material: Phosphor Bronze
- Plating: Gold flash on post, Matte Tin on tail
- Insulator Material: Black Glass Polyester
- Pitch: 2.54 mm (0.100 inch)
- Number of Positions: Custom, specified per model
- Operating Temperature Range: -55°C to +105°C
- Insulation Resistance: ≥5000 MO
- Contact Resistance: Not specified
- Voltage Rating: 1000 VRMS (specific models 2200 VRMS)
- Surface Mount: Yes, with precise coplanarity of 0.006 inch
- Standards: UL Listed, RoHS compliant
- Termination: Through-hole and surface mount options available
- Mechanical Stability: Designed for high-density, multi-row applications
- Additional Features: Polarized, locking leads, optional gold plating for enhanced durability
Buy the Buy Samtec HTSS11002GD Part Number HTSS11002GD Online
Order the Samtec HTSS11002GD shrouded header connector online today to ensure reliable, high-performance connections with a durable gold flash finish. Perfect for tight-fitting electronic assemblies, it offers excellent temperature tolerance from -55°C to +105°C, a high insulation resistance, and compatibility with lead-free soldering. Its precise 2.54 mm pitch and dual mounting options make it suitable for high-density applications. Trust Samtec's quality for your next project, and enjoy fast delivery and expert support to meet your manufacturing needs.
Buy Samtec HTSS11002GD now and experience unmatched reliability, durable gold flash plating, and high-density electrical connections for demanding electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC HTSS11002GD?
You can click on the BUY or RFQ button to purchase HTSS11002GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS11002GD?
You can download the HTSS11002GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS11002GD?
SAMTEC
