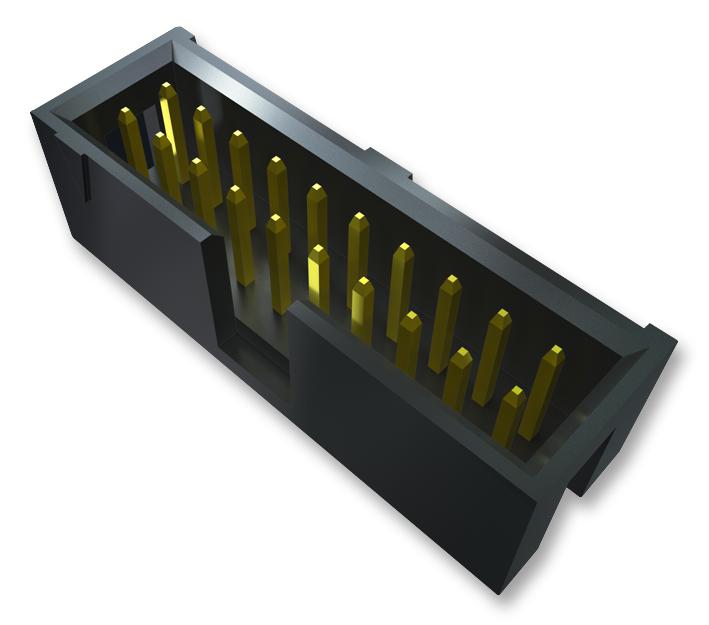

SAMTEC HTSS11002LD Shrouded Connector
The HTSS series are shrouded IDC headers and stackers designed for reliable electrical connections in industrial applications. Made from black glass-filled polyester, these connectors feature phosphor bronze terminals with optional gold or tin plating over nickel, ensuring excellent conductivity and corrosion resistance. They support operating temperatures from -55°C to +125°C with gold plating and -55°C to +105°C with tin plating. Compliant with RoHS, they withstand voltages up to 4000 VRMS, making them suitable for automation, control systems, and electronic equipment requiring durable, space-efficient connectivity.
SAMTEC HTSS11002LD Shrouded Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 μin Ni
- Insulation Resistance: 5000 MΩ min
- Operating Temp Range: -55°C to +125°C with gold, -55°C to +105°C with tin
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 4000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (HTSS)
- SMT Lead Coplanarity: 0.15 mm
- Other sizes, platings, and options available, including polarizing and locking features
Buy the Samtec HTSS11002LD – Reliable Connector for Industrial Applications
Purchase the Samtec HTSS11002LD online today—engineered for dependable electrical connections in industrial automation, control panels, and electronic systems. Featuring durable glass-filled polyester insulation, phosphor bronze terminals with optional gold or tin plating, and high voltage resistance, this connector ensures long-lasting performance. Its RoHS compliance and lead-free solderability make it suitable for environmentally conscious manufacturing. With a temperature range from -55°C to +125°C, it meets demanding industry standards for safety and reliability, providing secure, space-efficient connections for diverse electronic applications.
Get Samtec HTSS11002LD today—built for precision, robust electrical performance, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC HTSS11002LD?
You can click on the BUY or RFQ button to purchase HTSS11002LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS11002LD?
You can download the HTSS11002LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS11002LD?
SAMTEC
