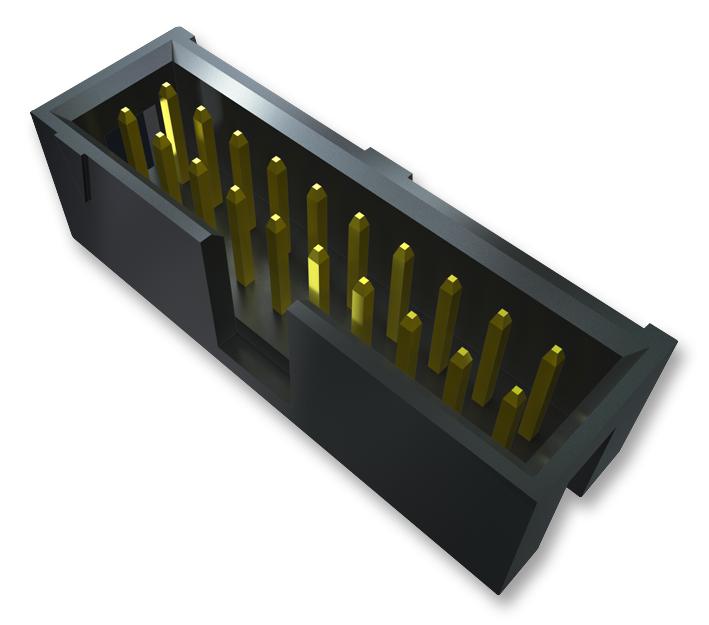

SAMTEC HTSS11002TD Shrouded Connector
The HTSS11002TD is a dual-row shrouded connector with a .025-inch square post header design, featuring matte tin finish for reliable solderability and corrosion resistance. Suitable for through-hole mounting, it offers a pitch of 2.54 mm and is designed for applications requiring high insulation resistance and voltage withstand capabilities. The connector features phosphor bronze terminals with gold or matte tin plating, operating within -55°C to +105°C temperature range. Ideal for electronic assemblies demanding secure connections and durable contact materials.
SAMTEC HTSS11002TD Shrouded Connector Specifications:
- Post Thickness: .025 inch (0.635 mm)
- Pitch: 2.54 mm (0.100 inch)
- Operating Temperature Range: -55°C to +105°C
- Material: Phosphor Bronze terminal with matte Tin or Gold plating
- Surface Finish: Matte Tin on tail, gold flash on post
- Insulation Resistance: 5000 MΩ minimum
- Withstanding Voltage: 1000 VRMS to 2200 VRMS depending on model
- Mount Type: Through-hole
- Contact Material: Phosphor Bronze
- Plating Options: Matte Tin, Gold-flash on post
- Lead-Free Solderable: Yes
- Circuit Compatibility: Double Row, Single Row, various options
- Dimensions: Multiple heights from 0.115 inch to 0.200 inch, depending on model
- Certifications: Not specified
- Additional: Suitable for SMT and through-hole mounting, mechanical stability enhancements recommended
Buy the Samtec Series HTSS Shrouded Connector: HTSS11002TD
Purchase the Samtec Series HTSS11002TD shrouded connector online today and enjoy high-quality, dependable connections for your electronic projects. Designed for through-hole mounting with a .025-inch post, this connector features a durable matte tin finish for corrosion resistance and reliable solderability. Its high insulation resistance, voltage withstand capabilities, and operating temperature range of -55°C to +105°C make it ideal for demanding applications. Secure your electronics with this versatile connector, available for quick online ordering and fast delivery.
Order your Samtec Series HTSS11002TD shrouded connector today and ensure durable, reliable connections in your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC HTSS11002TD?
You can click on the BUY or RFQ button to purchase HTSS11002TD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS11002TD?
You can download the HTSS11002TD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS11002TD?
SAMTEC
