SAMTEC HTSS11302TD Shrouded IDC Connector
The HTSS11302TD is a shrouded IDC header designed for reliable electrical connections in electronics. Constructed from black glass-filled polyester insulator and phosphor bronze terminals with gold or tin plating over nickel, it offers excellent insulation resistance of at least 5000 MQ and withstands up to 4000 VRMS. Suitable for SMT applications, it features a coplanarity of 0.15 mm and complies with UL 94V-0 flammability ratings. This high-quality connector supports operating temperatures from -55°C to +125°C, ensuring durability in demanding environments. Compatible with Samtec’s IDC series for efficient assembly and maintenance.
SAMTEC HTSS11302TD Shrouded IDC Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50
- Insulation Resistance: 5000 MQ min
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 4000 VRMS
- SMT Lead Coplanarity: 0.15 mm
- Lead-Free, Solderable: Yes (HTSS)
- RoHS Compliant: Yes
- Dimensions vary by size, with typical sizes up to 2.54mm pitch, designed for 2-12 pin configurations

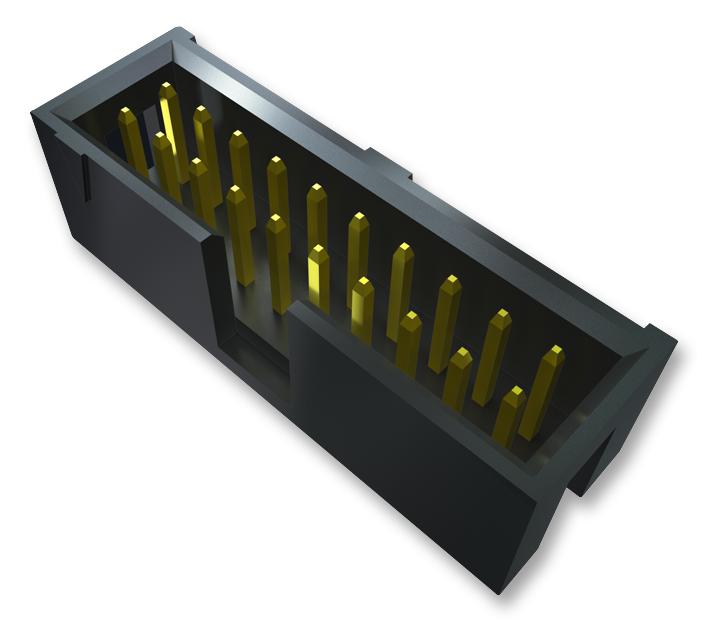

Buy the Samtec Series HTSS Connector: HTSS11302TD
Purchase the Shrouded IDC Connector today and ensure secure, high-quality connections for your electronic projects. Designed with durable materials, it offers excellent insulation resistance and withstands high voltages up to 4000 VRMS. Its SMT compatibility and coplanarity of 0.15 mm make installation straightforward and reliable. Operating across -55°C to 125°C, this connector meets UL 94V-0 flammability standards and RoHS compliance. Perfect for professionals seeking dependable, easy-to-mount connectors for complex electronic assemblies.
Get Samtec HTSS11302TD today—built for reliable connections in electronics with high insulation resistance and robust temperature range.
Frequently Asked Questions
Where can I buy SAMTEC HTSS11302TD?
You can click on the BUY or RFQ button to purchase HTSS11302TD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS11302TD?
You can download the HTSS11302TD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS11302TD?
SAMTEC
